Description
Brand - CPM

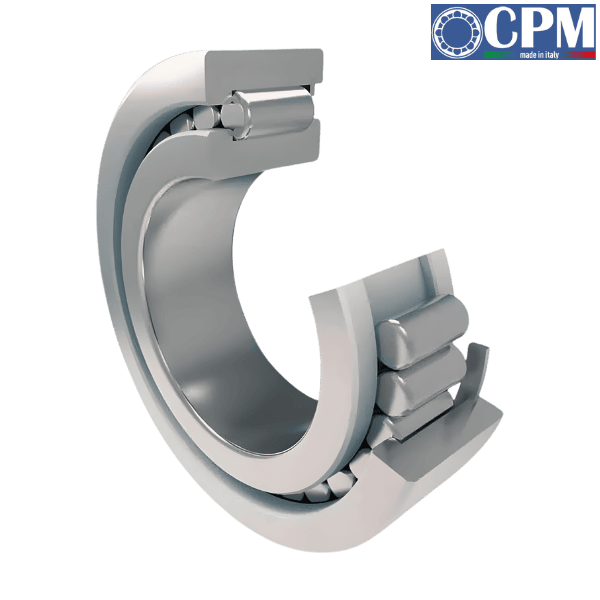

Part Number - 2181 CPM
Category - Single Row Full Complement Cylindrical Roller Bearing
Type - B

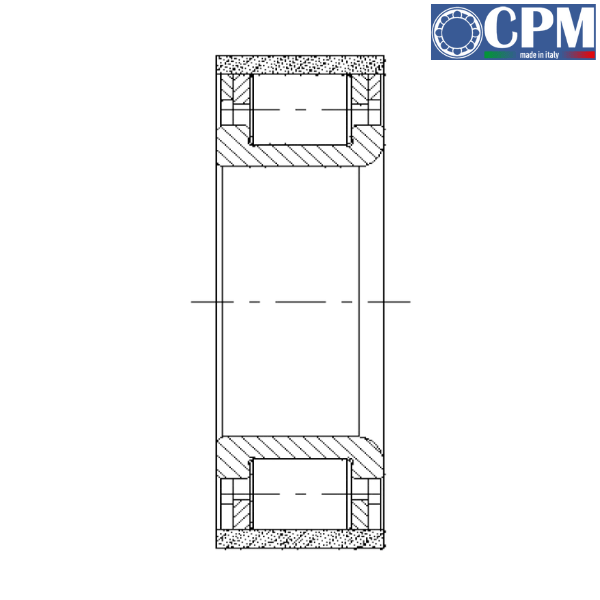

Type B - 2 Flange Rings and 2 Snap Rings
Principal Dimensions and Load Ratings (Metric):
Inner Diameter (d) - 18 mm
Outer Diameter (Dr) - 30.52 mm
Width (B) - 13 mm
Dimension (J) - 25.15 mm
Dimension (X) - 8 mm
Chamfer Dimension (R min) - 2 mm
Minimum Chamfer Dimension (r min) - 0.5 mm
Basic Dynamic Radial Load Rating (Cr) - 19.9 kN
Basic Static Radial Load Rating (Cor) - 21.2 kN
Other salient points to be noted:
• Configurations: Available as single-row or multi-row designs, and in both full complement (full-fill) and caged versions
• Space Optimization: Full-fill cylindrical bearings are made with one or more crowns to maximize roller density and space use
• Performance: The caged variant is engineered for superior performance, withstanding very high loads and operating at high speeds
• Coatings: Coatings like chrome, phosphating, galvanizing, or black oxide can be applied as needed for specific technical requirements
• Materials: In most cases bearings are made of typical chromium bearing steel, either full hardening or case hardening
• Dimension: Minimum inner diameter 10 mm to maximum outer diameter 800 mm
• Main Appliccation: Planetary gearboxes, textile machines
♦♦ Images are for representation purposes only
