Description
Brand - CPM
Part Number - 2165 CPM
Category - Single Row Full Complement Cylindrical Roller Bearing
Type - A
Type A - Without Flange Ring

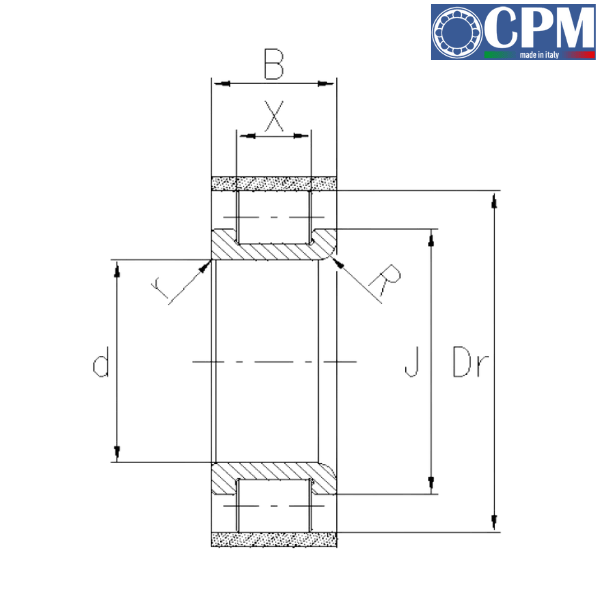

Principal Dimensions and Load Ratings (Metric):
Inner Diameter (d) - 20 mm
Outer Diameter (Dr) - 36.81 mm
Width (B) - 16 mm
Dimension (J) - 28.6 mm
Dimension (X) - 9 mm
Chamfer Dimension (R min) - 2.6 mm
Minimum Chamfer Dimension (r min) - 0.7 mm
Basic Dynamic Radial Load Rating (Cr) - 27.5 kN
Basic Static Radial Load Rating (Cor) - 27.9 kN
Other salient points to be noted:
• Configurations: Available as single-row or multi-row designs, and in both full complement (full-fill) and caged versions
• Space Optimization: Full-fill cylindrical bearings are made with one or more crowns to maximize roller density and space use
• Performance: The caged variant is engineered for superior performance, withstanding very high loads and operating at high speeds
• Coatings: Coatings like chrome, phosphating, galvanizing, or black oxide can be applied as needed for specific technical requirements
• Materials: In most cases bearings are made of typical chromium bearing steel, either full hardening or case hardening
• Dimension: Minimum inner diameter 10 mm to maximum outer diameter 800 mm
• Main Appliccation: Planetary gearboxes, textile machines

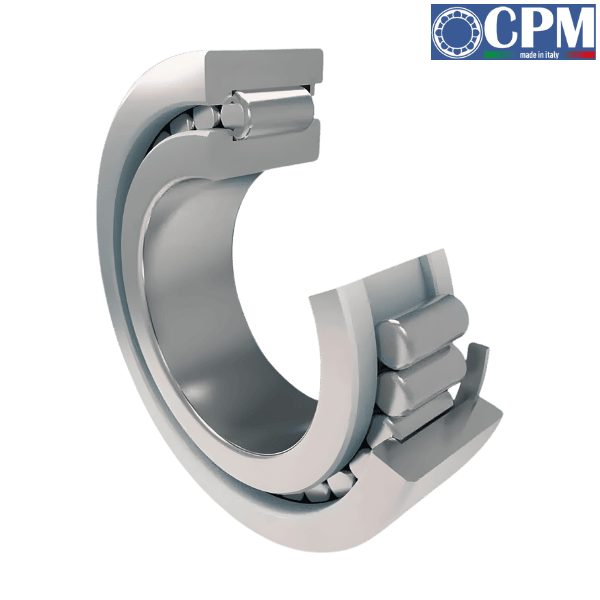

♦♦ Images are for representation purposes only
