Description
Brand - CPM
Part Number - 2159 CPM
Category - Double Row Full Complement Cylindrical Roller Bearing

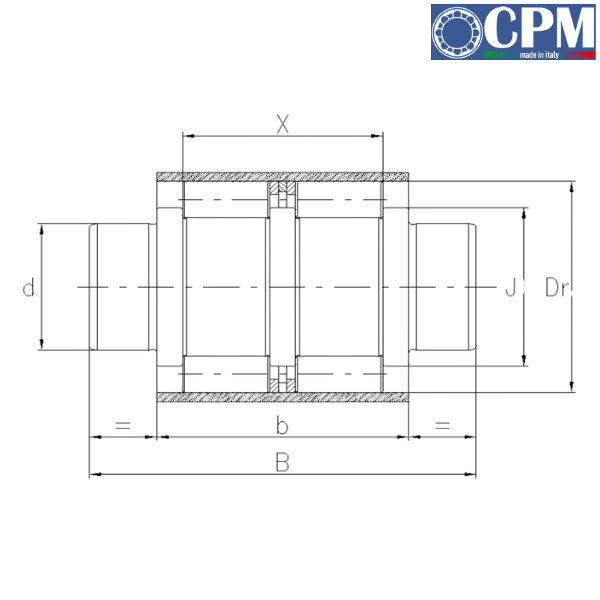

Principal Dimensions and Load Ratings (Metric):
Inner Diameter (d) - 30 mm
Outer Diameter (Dr) - 58.235 mm
Width (B) - 81 mm
Dimension (b) - 49 mm
Dimension (J) - 43.5 mm
Dimension (X) - 41 mm
Basic Dynamic Radial Load Rating (Cr) - 124.3 kN
Basic Static Radial Load Rating (Cor) - 177.8 kN
Other salient points to be noted:
• Configurations: Available as single-row or multi-row designs, and in both full complement (full-fill) and caged versions
• Space Optimization: Full-fill cylindrical bearings are made with one or more crowns to maximize roller density and space use
• Performance: The caged variant is engineered for superior performance, withstanding very high loads and operating at high speeds
• Coatings: Coatings like chrome, phosphating, galvanizing, or black oxide can be applied as needed for specific technical requirements.
• Materials: In most cases bearings are made of typical chromium bearing steel, either full hardening or case hardening.
• Dimension: Minimum inner diameter 10 mm to maximum outer diameter 800 mm
• Main Appliccation: Planetary gearboxes, textile machines

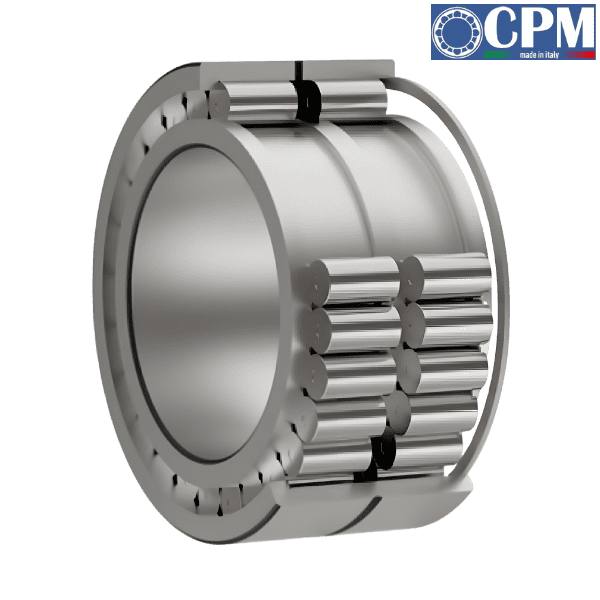

♦♦ Images are for representation purposes only
