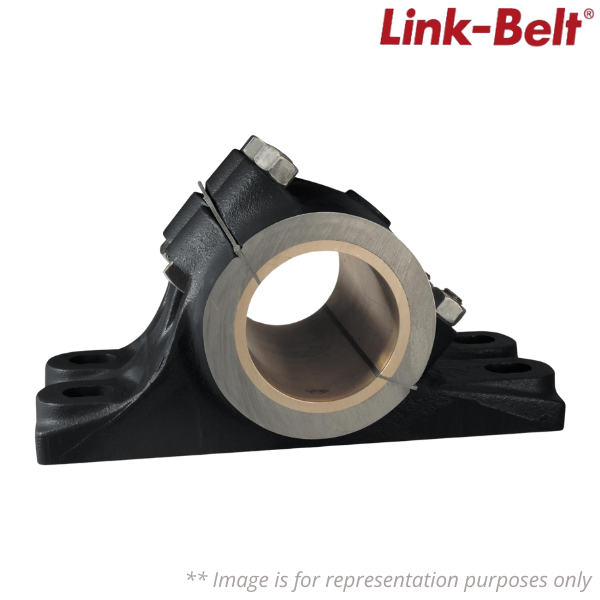

21579Z Link-Belt

Brand - Link-Belt
Item Number - 21579Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327194086
Material - 10443525
Model - 21500Z
Bore Size (in) - 4 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Split 40 degree
Sleeve Material - Bronze
Base to Centerline Height (in) - 4 1/2 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 4 in
Bore Length (in) - 10 in
Bushing - 285BY242
Distance Between Bolt Holes (in) - 15 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Height - 11
Insert - 285BY242
Length - 18
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 5/8 in
Mounting Bolt Size (in) - 7/8 in
Mounting Pad Height (in) - 1 7/8 in
Mounting Pad Length (in) - 18 in
Mounting Pad Width (in) - 7 in
Weight (kg) - 52.16308
Pipe Tap Size (in) - 1/2 in
Required Distance for Cap Removal (in) - 12 in
Shims - 131Y95412 QTY 8
Unit of Dimension - IN
Volume - 0.349
Volume Unit - Hectoliter
