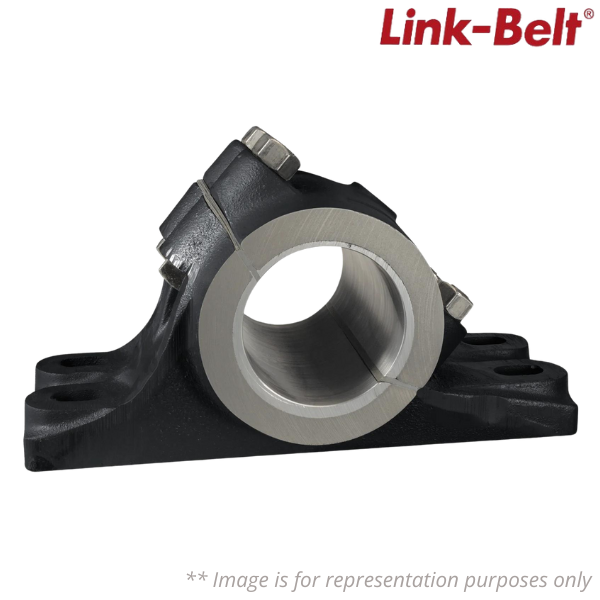

21563 Link-Belt

Brand - Link-Belt
Item Number - 21563 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327194031
Material - 10423690
Model - 21500
Bore Size (in) - 3.9375 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Split 40 degree
Sleeve Material - Babbitt
Base to Centerline Height (in) - 3 3/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bolt Hole Spacing Width (in) - 3 in
Bore Length (in) - 8 in
Distance Between Bolt Holes (in) - 12 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Height - 8.25
Length - 15.88
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Hole Slot Length (in) - 1 3/8 in
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 1 5/8 in
Mounting Pad Length (in) - 14 3/4 in
Mounting Pad Width (in) - 5 1/2 in
Weight (kg) - 29.4381208
Pipe Tap Size (in) - 1/2 in
Required Distance for Cap Removal (in) - 10 1/4 in
Unit of Dimension - IN
Volume - 0.204
Volume Unit - Hectoliter
