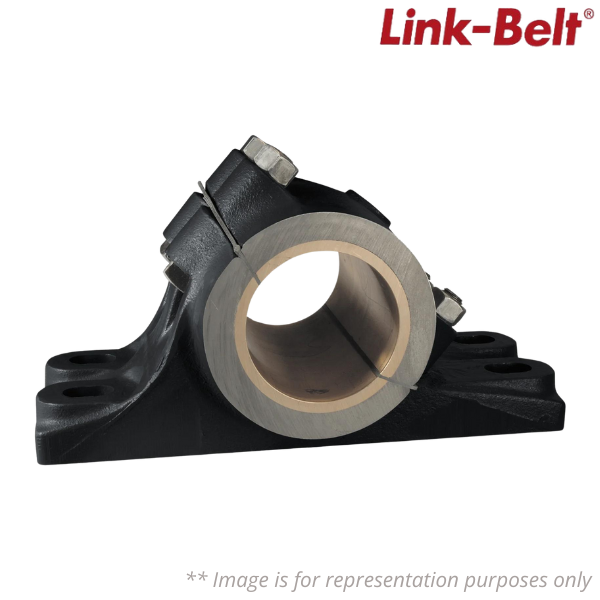

Description
Brand - Link-Belt
Item Number - 21548Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 793699323931
Material - 10443522
Model - 21500Z
Bore Size (in) - 3 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Split 40 degree
Sleeve Material - Bronze
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Grease Fitting Size - 1/2 NPT
Height - 6.13
Insert - 285BY230
Length - 12.38
Lubrication Type - NOT GREASED FROM FACTORY
Weight (kg) - 11.87503856
Shims - 131Y95429 QTY 4
Unit of Dimension - IN
Volume - 2.338
Volume Unit - GLL
Width - 7.13
