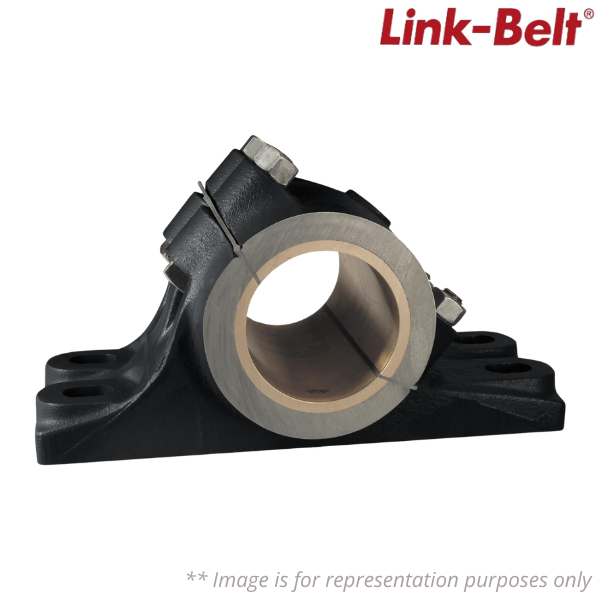

21547Z Link-Belt

Brand - Link-Belt
Item Number - 21547Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327194000
Material - 10426592
Model - 21500Z
Bore Size (in) - 2 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Split 40 degree
Sleeve Material - Bronze
Base to Centerline Height (in) - 3 1/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 2 1/2 in
Bore Length (in) - 6 in
Bushing - 285BY229
Distance Between Bolt Holes (in) - 8 3/4 in
Grease Fitting Size - 3/8 NPT
Height - 6.13
Insert - 285BY229
Length - 12.38
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 in
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 3/8 in
Mounting Pad Length (in) - 11 in
Mounting Pad Width (in) - 4 1/2 in
Weight (kg) - 12.32863056
Pipe Tap Size (in) - 3/8 in
Required Distance for Cap Removal (in) - 7 1/2 in
Shims - 131Y95429 QTY 4
Unit of Dimension - IN
Volume - 2.338
Volume Unit - GLL
Width - 7.13
