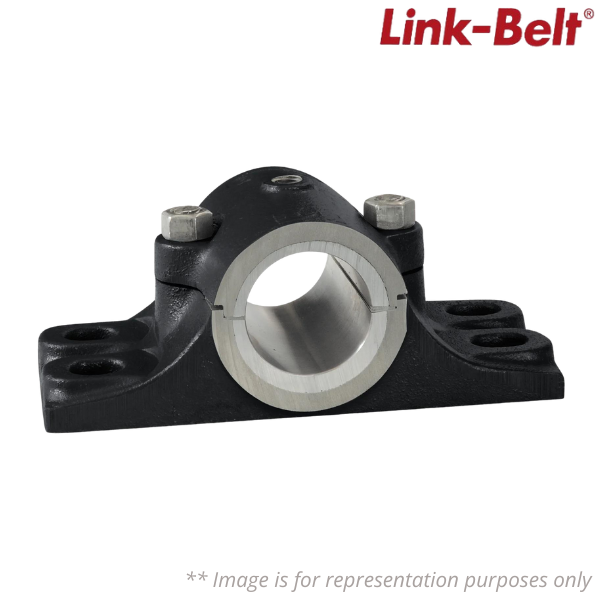

21464 Link-Belt

Brand - Link-Belt
Item Number - 21464 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327992279
Material - 10420587
Model - 21400
Bore Size (in) - 4 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Babbitt
Base to Centerline Height (in) - 3 1/2 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bolt Size (in) - 3/4 in
Bore Length (in) - 8 in
Distance Between Bolt Holes (in) - 12 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/2 NPT
Height - 15.63
Length - 9.13
Lubrication Type - NOT GREASED FROM FACTORY
Weight (kg) - 27.669112
Unit of Dimension - IN
Volume - 4.166
Volume Unit - GLL
Width - 6.75
