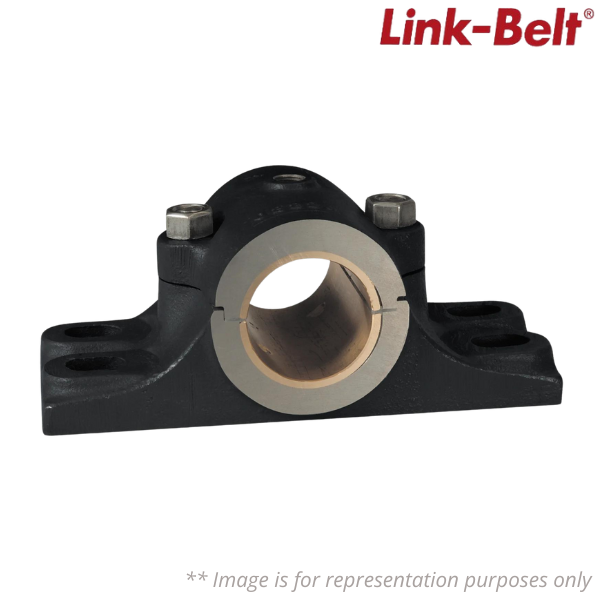

21463Z Link-Belt

Brand - Link-Belt
Item Number - 21463Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327193591
Material - 10443520
Model - 21400Z
Bore Size (in) - 3 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 3 1/2 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 3 in
Bore Length (in) - 8 in
Bushing - 285BY319
Distance Between Bolt Holes (in) - 12 in
Grease Fitting Size - 1/2 NPT
Height - 15.63
Insert - 285BY319
Length - 9.13
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 3/8 in
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 1 1/2 in
Mounting Pad Length (in) - 14 3/4 in
Mounting Pad Width (in) - 5 1/2 in
Weight (kg) - 28.1453836
Pipe Tap Size (in) - 1/2 in
Required Distance for Cap Removal (in) - 9 13/16 in
