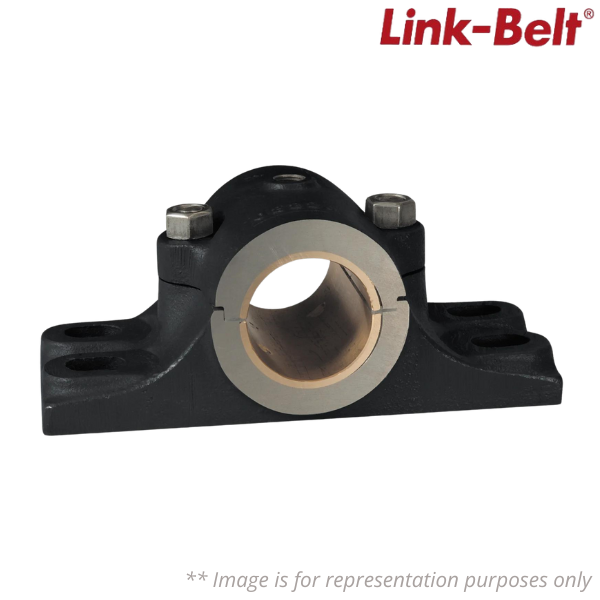

21443Z Link-Belt

Brand - Link-Belt
Item Number - 21443Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327193539
Material - 10431001
Model - 21400Z
Bore Size (in) - 2.6875 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 2 1/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 2 1/4 in
Bore Length (in) - 5 1/2 in
Bushing - 285BY39
Distance Between Bolt Holes (in) - 8 1/4 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 3/8 NPT
Height - 10.38
Insert - 285BY39
Length - 6
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 in
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 1/4 in
Mounting Pad Length (in) - 10 1/2 in
Mounting Pad Width (in) - 4 1/4 in
Weight (kg) - 9.12627104
Pipe Tap Size (in) - 3/8 in
