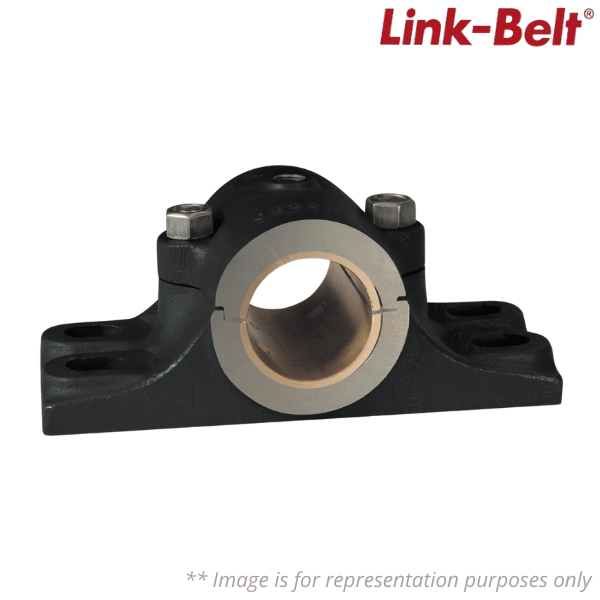

21431Z Link-Belt

Brand - Link-Belt
Item Number - 21431Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327193485
Material - 10416144
Model - 21400Z
Bore Size (in) - 1.9375 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Sleeve Material - Bronze
Base to Centerline Height (in) - 1 3/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bolt Hole Spacing Width (in) - 1 3/4 in
Bore Length (in) - 4 in
Bushing - 285BY31
Distance Between Bolt Holes (in) - 6 1/2 in
Grease Fitting Size - 1/4 NPT
Height - 4.5
Insert - 285BY31
Length - 8.5
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 3/4 in
Mounting Bolt Size (in) - 1/2 in
Mounting Pad Height (in) - 7/8 in
Mounting Pad Length (in) - 8 1/4 in
Mounting Pad Width (in) - 3 1/2 in
Weight (kg) - 4.52231224
Pipe Tap Size (in) - 1/4 in
Required Distance for Cap Removal (in) - 4 1/2 in
