Description

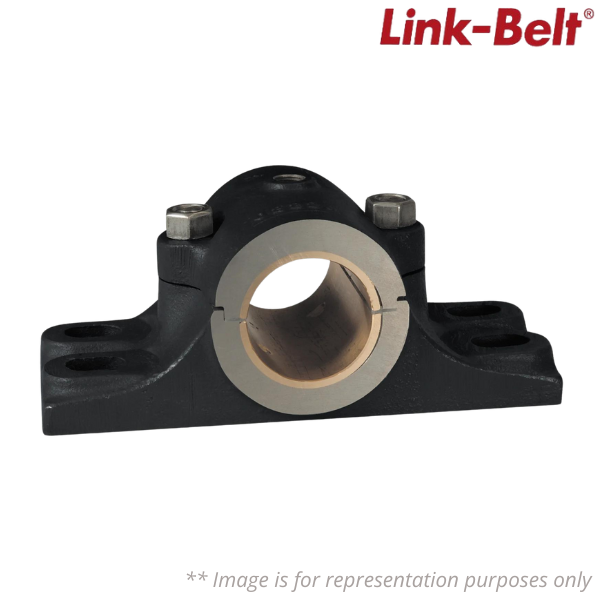

Brand - Link-Belt
Item Number - 214128Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327193461
Material - 10426588
Model - 21400Z
Bore Size (in) - 8 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Four Bolt, Gibbed Joint
Base to Centerline Height (in) - 7 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Distance Between Bolt Holes (in) - 21.5 in
Grease Fitting Size - 1/2 NPT
Height - 13
Insert - 285BY337
Length - 25.75
Lubrication Type - NOT GREASED FROM FACTORY
Weight (kg) - 170.550592
Shims - 131Y36630 QTY 12
Unit of Dimension - IN
Volume - 0.059
Volume Unit - Cubic meter
Width - 10.75
