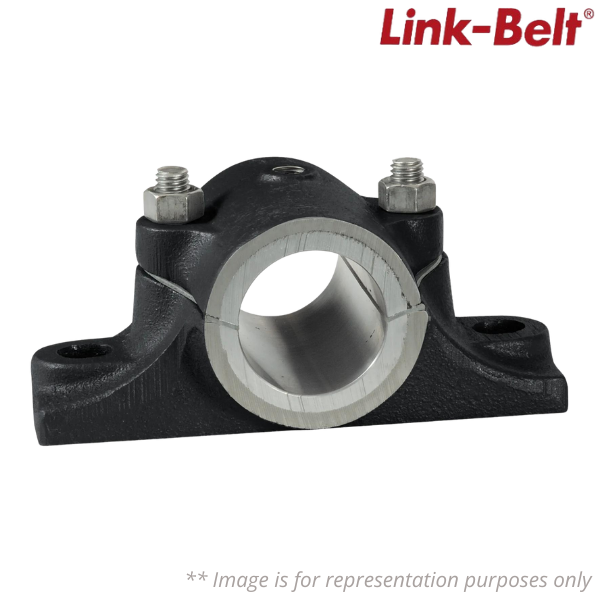

21243 Link-Belt

Brand - Link-Belt
Item Number - 21243 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192860
Material - 10423686
Model - 21200
Bore Size (in) - 2 11/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Babbitt
Base to Centerline Height (in) - 2 1/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bore Length (in) - 5 1/2 in
Distance Between Bolt Holes (in) - 7 3/4 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 3/8 NPT
Height - 11.25
Length - 6.5
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Hole Slot Length (in) - 1 1/8 in
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 1 3/16 in
Mounting Pad Length (in) - 10 in
Mounting Pad Width (in) - 3 1/4 in
Weight (kg) - 9.17163024
Pipe Tap Size (in) - 3/8 in
Required Distance for Cap Removal (in) - 6 3/8 in
Unit of Dimension - IN
Volume - 1.583
Volume Unit - GLL
Width - 5
