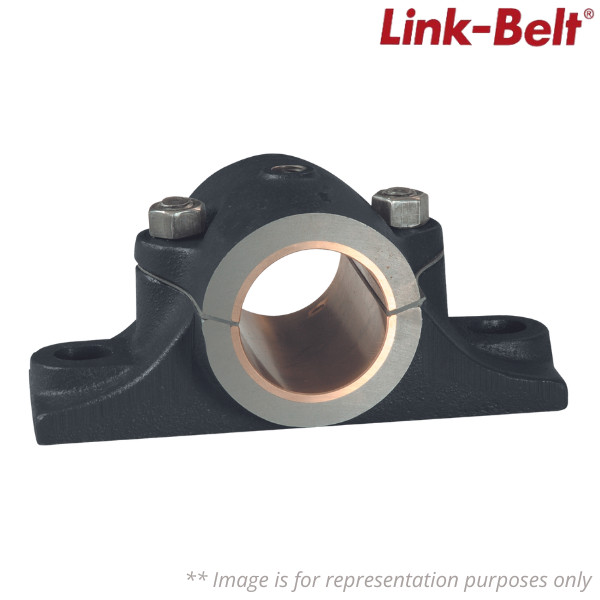

21235Z Link-Belt

Brand - Link-Belt
Item Number - 21235Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192594
Material - 10410091
Model - 21200Z
Bore Size (in) - 2 3/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Bronze
Base to Centerline Height (in) - 1 7/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bore Length (in) - 4 1/2 in
Bushing - 285BY219
Distance Between Bolt Holes (in) - 6 1/2 in
Grease Fitting Size - 3/8 NPT
Height - 5.5
Insert - 285BY219
Length - 9.56
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Bolt Hole Slot Length (in) - 1 in
Mounting Pad Length (in) - 8 1/2 in
Mounting Pad Width (in) - 2 3/4 in
Weight (kg) - 5.1482692
Pipe Tap Size (in) - 3/8 in
Required Distance for Cap Removal (in) - 5 1/4 in
Shims - 131Y95426 QTY 4
Unit of Dimension - IN
Volume - 0.911
Volume Unit - GLL
Width - 4
