Description
Brand - Link-Belt
Item Number - 21235 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192587
Material - 10429604
Model - 21200
Housing Coating - POWDER COATED
Housing Material - Cast Iron

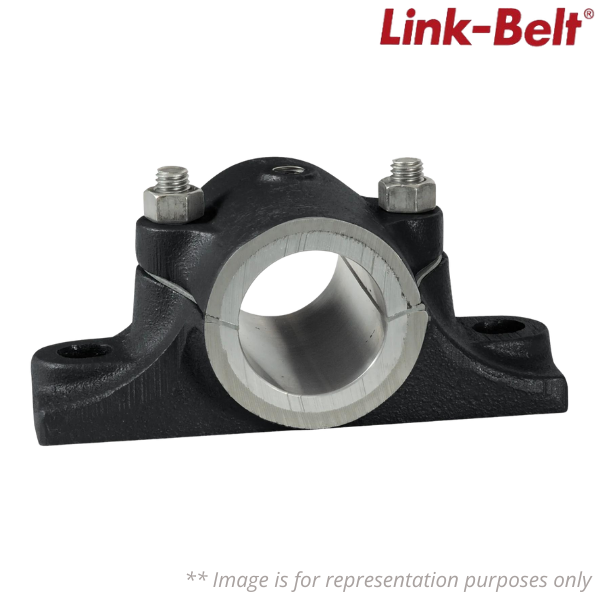

Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Base to Centerline Height (in) - 1 7/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bolt Size (in) - 5/8 in
Bore Diameter (in) - 2 3/16 in
Bore Length (in) - 4 1/2 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 3/8 NPT
Height - 5.5
Length - 9.56
Lubrication Type - NOT GREASED FROM FACTORY
Weight (kg) - 5.896696
Unit of Dimension - IN
Volume - 0.911
Volume Unit - GLL
Width - 4
