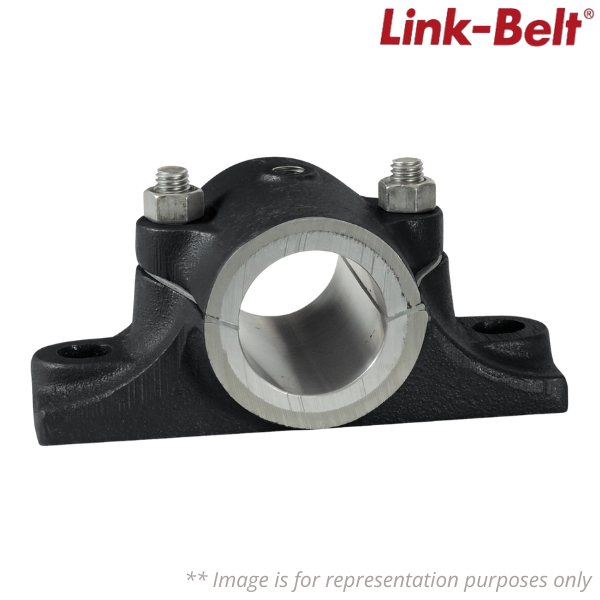

21221 Link-Belt

Brand - Link-Belt
Item Number - 21221 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192181
Material - 10408604
Model - 21200
Bore Size (in) - 1 5/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Babbitt
Base to Centerline Height (in) - 1 3/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BABBITT SLEEVE BRG
Bore Length (in) - 3 in
Distance Between Bolt Holes (in) - 4 7/8 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/4 NPT
Height - 2.25
Length - 5.75
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 54 C
Maximum Temperature (F) - 130 F
Mounting Bolt Hole Slot Length (in) - 11/16 in
Mounting Bolt Size (in) - 1/2 in
Mounting Pad Height (in) - 3/4 in
Mounting Pad Length (in) - 6 1/4 in
Mounting Pad Width (in) - 2 in
Weight (kg) - 2.2906396
Pipe Tap Size (in) - 1/4 in
Required Distance for Cap Removal (in) - 3 7/8 in
Unit of Dimension - IN
Volume - 0.322
Volume Unit - GLL
Width - 5.75
