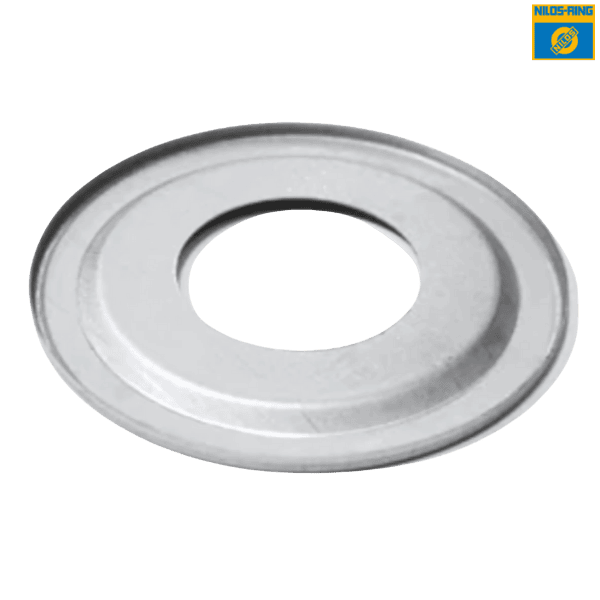

21075/21212 AV NILOS-RING

Brand - NILOS-RING
Item Number - 21075/21212 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 52 mm
Dimension (c) - 43 mm
Inner Diameter (d) - 19.05 mm
Thickness (s) - 0.3 mm
Width (v) - 6.9 mm

Principal Dimensions & Load Ratings (Imperial) :
Outer Diameter (a) - 2.0472 inch
Dimension (c) - 1.6929 inch
Inner Diameter (d) - 0.75 inch
Thickness (s) - 0.0118 inch
Width (v) - 0.2717 inch

♦ ♦ Images are for representation purposes only
