Description
Brand - GAMET

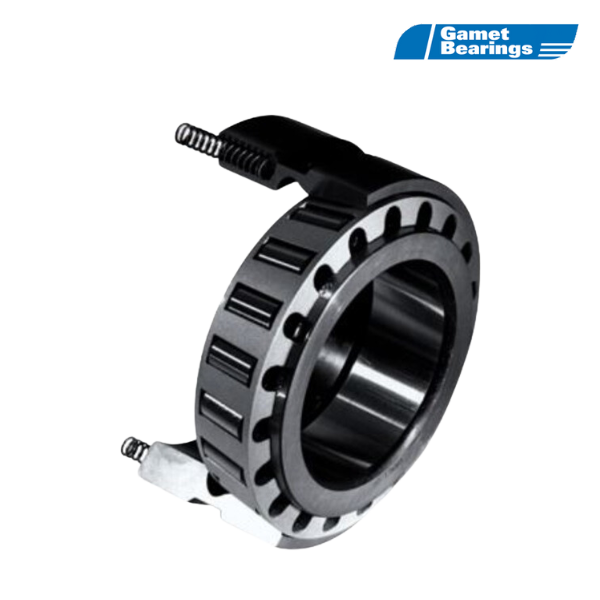

Part Number - 210085/210170P GAMET
Category - Super Precision Tapered Roller Bearing
Size (mm) - 85x170x97.5
Bore Diameter (mm) - 85
Outer Diameter (mm) : 170
Width (mm) - 97.5

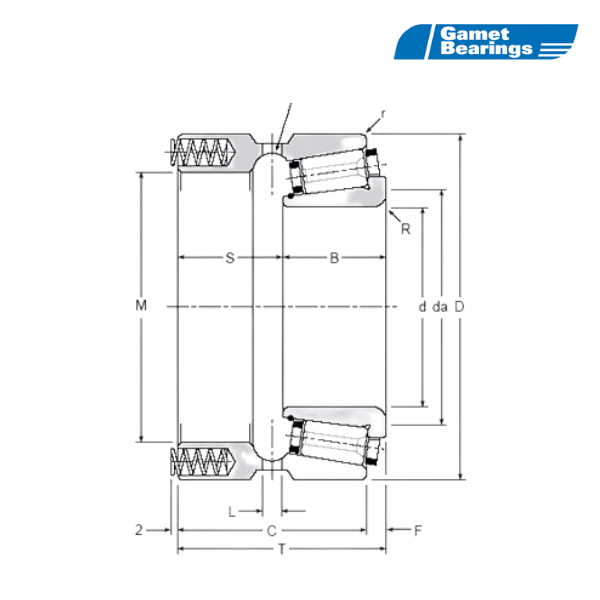

d - 85 mm
D - 170 mm
T - 97.5 mm
B - 50.5 mm
C - 89 mm
r - 1 mm
F - 8.5 mm
L - 8 mm
M - 130 mm
R - 3.5 mm
S - 47 mm
da - 114 mm
Weight - 7.34 Kg
Limiting speed - 4200 r/min
