Description
Brand - CPM
Part Number - 2075 CPM
Category - Special Angular Contact Ball Bearing
Type - C

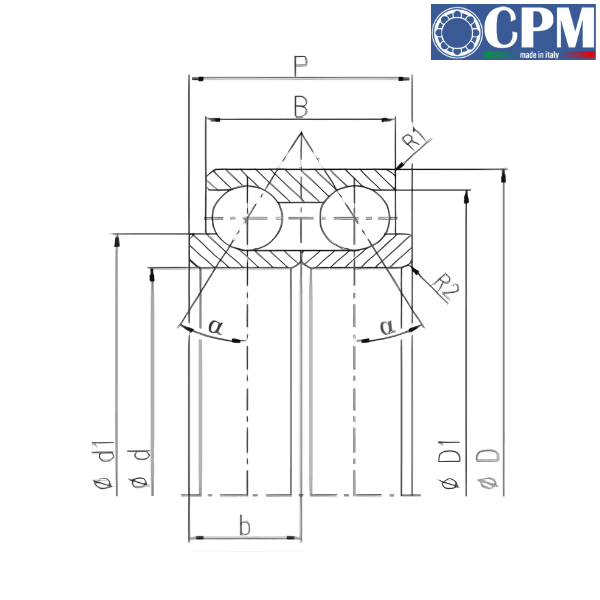

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 96 mm
Outer Diameter (D) - 152.4 mm
Width (B) - 45 mm
Dimension (b) - 23 mm
Dimension (P) - 46 mm
Dimension (D1) - 132.8 mm
Dimension (d1) - 120.2 mm
Dimension (R1) - 1.5 mm
Dimension (R2) - 1.5 mm
Angle (α) - 35°
Basic Dynamic Load Rating (Cr) - 47 kN
Basic Static Load Rating (Cor) - 63.8 kN
Other salient points to be noted:
General Features:
• Single-row bearings must be coupled with an opposing bearing—typically an identical one, though occasionally a different size or contact angle is used for specific applications
• Increasing the contact angle boosts the axial (thrust) load capacity
• They are available in three main configurations based on lubrication: shielded and greased for life, open without grease, or designed for in-machine lubrication with oil or grease
• Various cage materials are used—brass, steel, or plastic—depending on the specific requirements of the application
• A major performance advantage is the high stiffness achieved when the bearings are preloaded
• They are capable of handling very high rotational speeds, which is dependent on the contact angle chosen
• Special surface treatments, such as chrome, phosphating, galvanizing, or black oxide, can be applied based on technical needs
Material:
• The components are typically manufactured from chromium bearing steel, which is available in either full-hardening or case-hardening varieties
• For specific application demands, stainless steel can be used instead (e.g., where corrosion resistance is critical)
• In special, high-performance cases, ceramic balls can be adopted instead of traditional steel balls
Main Applications:
• Planetary gearboxes, Bottling machines, Textile looms

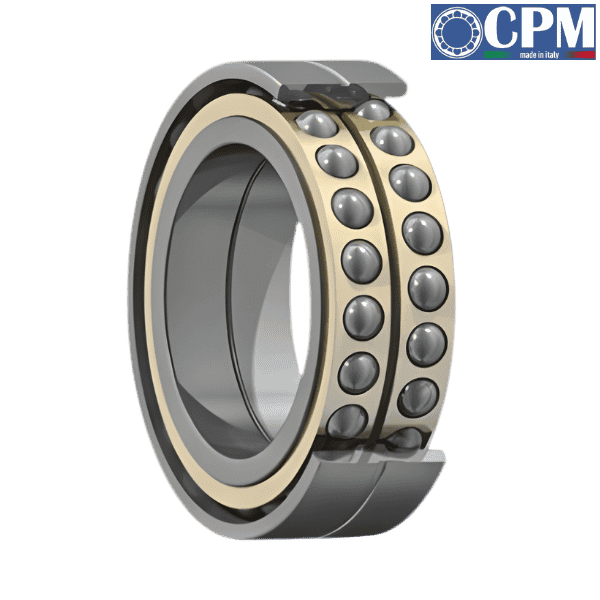

♦♦ Images are for representation purposes only
