Description
Brand - ZEN

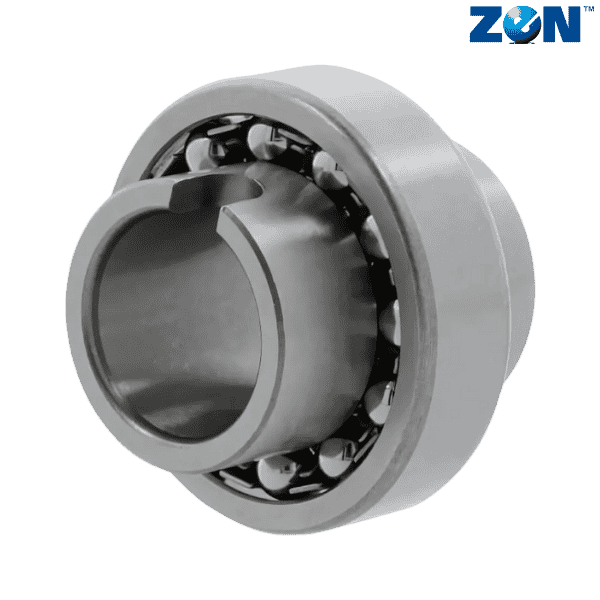

Item Number - 203-KRRAH02 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 16.2
D2 (mm) - 40
Bi (mm) - 18.29
Width (B) mm - 12
Dynamic Load Rating (N) - 9570
Static Load Rating (N) - 4790
Weight (kg) - 0.070
Radial Play - 0.011-0.025
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 10#
** Images are for representation purposes only
