Description
Brand - NILOS
Item Number - 20208 AV NILOS
Category - NILOS-RING for Single Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 40 mm
Outer Diameter (a) - 72.7 mm
Dimension (C) - 57 mm
Widtth (h) - 3 mm
Material Thickness (s) - 0.3 mm

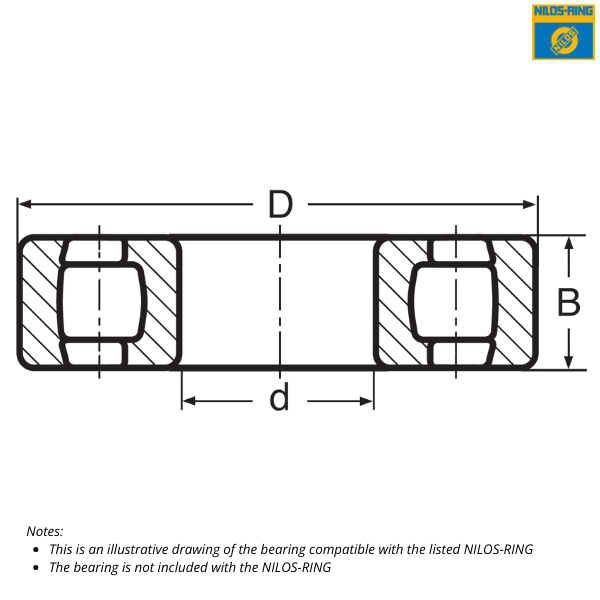

Description of Compatible Bearing (202 Series) :
Bearing Part Number - 20208
Bearing Type - Single Row Spherical Roller Bearing
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 80 mm
Width (B) - 18 mm
♦♦ Images are for representation purposes only
Item Number - 20208 AV NILOS
Category - NILOS-RING for Single Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 40 mm
Outer Diameter (a) - 72.7 mm
Dimension (C) - 57 mm
Widtth (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (202 Series) :
Bearing Part Number - 20208
Bearing Type - Single Row Spherical Roller Bearing
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 80 mm
Width (B) - 18 mm
♦♦ Images are for representation purposes only
