Description
Brand - TIMKEN
Item Number - 19138X/19268-B TIMKEN
Also Known As - 19138X - 19268-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 35
Bore Diameter (d) inch - 1.378
Outer Diameter (D) mm - 68.262
Outer Diameter (D) inch - 2.6875
Width (T1) mm - 7.539
Width (T1) inch - 0.2968
Dynamic Load Rating (C1) N - 50700
Dynamic Load Rating (C1) lbf - 11400
Factor (e) - 0.44
Factor (Y) - 1.35
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 13100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 2960
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 10000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2250
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.31
Basic Static Radial Load Rating (C0) N - 57800
Basic Static Radial Load Rating (C0) lbf - 13000
Cone Width (B) mm - 16.52
Cone Width (B) inch - 0.6504
Cup Width (C) mm - 11.908
Cup Width (C) inch - 0.4688
Effective Center Location (a) mm - -1.5
Effective Center Location (a) inch - -0.06
Outer Diameter of Outer Ring Flange (D1) mm - 72.128
Outer Diameter of Outer Ring Flange (D1) inch - 2.8397
Flange Width (C2) mm - 3.571
Flange Width (C2) inch - 0.1406

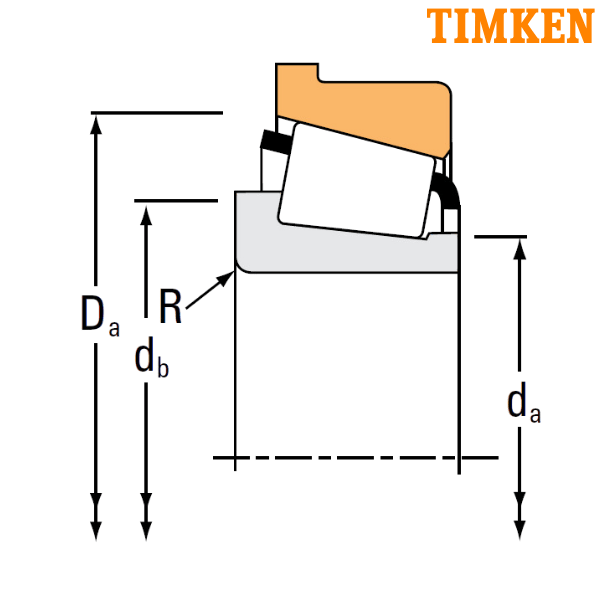

Maximum Shaft Fillet Radius (R) mm - 2
Maximum Shaft Fillet Radius (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 40.5
Cone Frontface Backing Diameter (da) inch - 1.59
Cone Backface Backing Diameter (db) mm - 43.5
Cone Backface Backing Diameter (db) inch - 1.71
Cup Frontface Backing Diameter (Da) mm - 67
Cup Frontface Backing Diameter (Da) inch - 2.64
Geometry Factor (G1) - 17.5
Geometry Factor (G2) - 11.5
Geometry Factor (Cg) - 0.0694
Weight (kg) - 0.28
Weight (lbs) - 0.6
Inner Part Number - 19138X
Outer Part Number - 19268-B

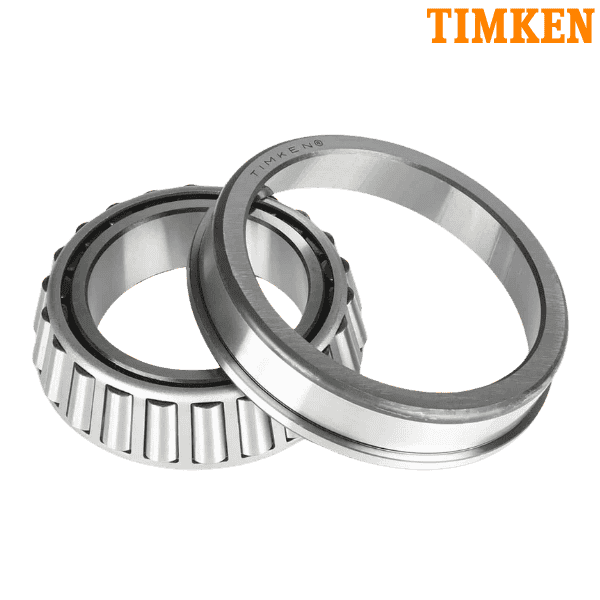

TSF - Single-Row Bearing with a Flange on the Outer Ring
** Images are for representation purposes only
