Description
Brand - ZEN
Item Number - 1654-2Z ZEN

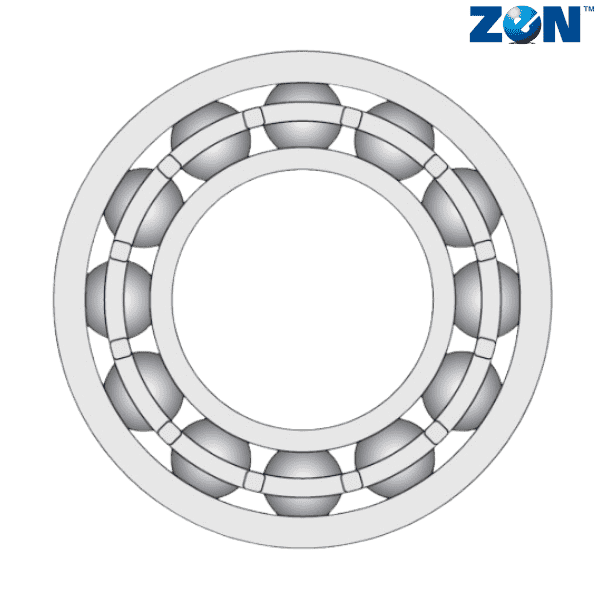

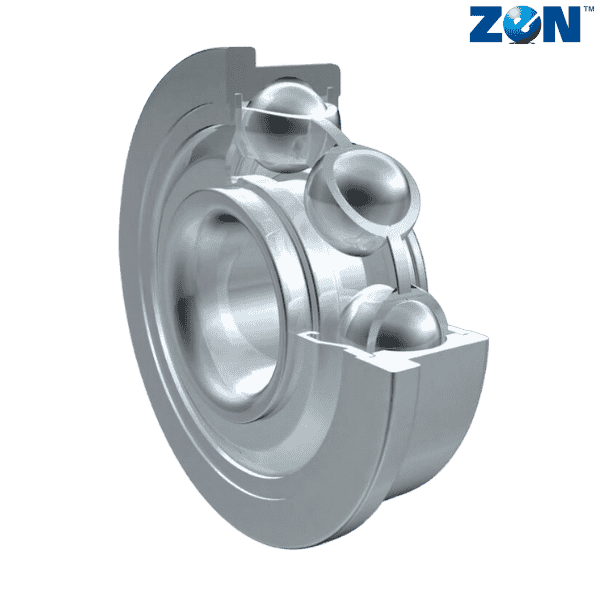

Category - Deep Groove Ball Bearing (Commercial Inch)

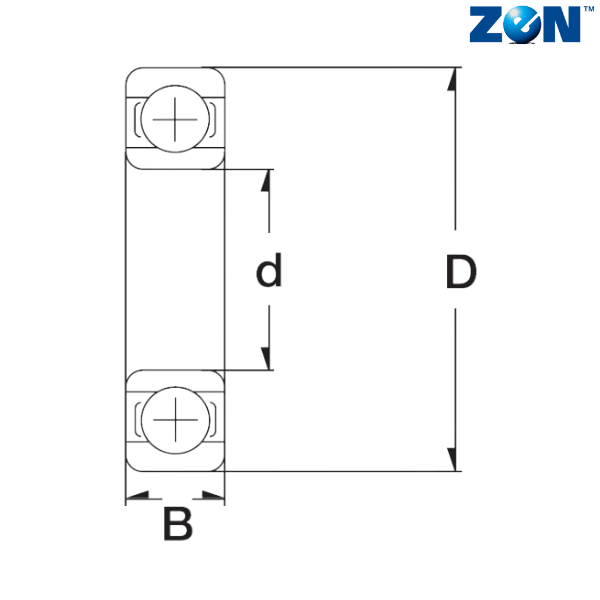

Inner Diameter (d) mm - 28.575
Inner Diameter (d) inch - 1.2500
Outer Diameter (D) mm - 63.500
Outer Diameter (D) inch - 2.5000
Width (B) mm - 15.875
Width (B) inch - 0.6250
Dynamic Load Rating (N) - 17000
Static Load Rating (N) - 9400
Weight (kg) - 0.208
** Images are for representation purposes only
