Description
Brand - ZEN
Item Number - 1630-2Z ZEN
Category - Deep Groove Ball Bearing (Commercial Inch)

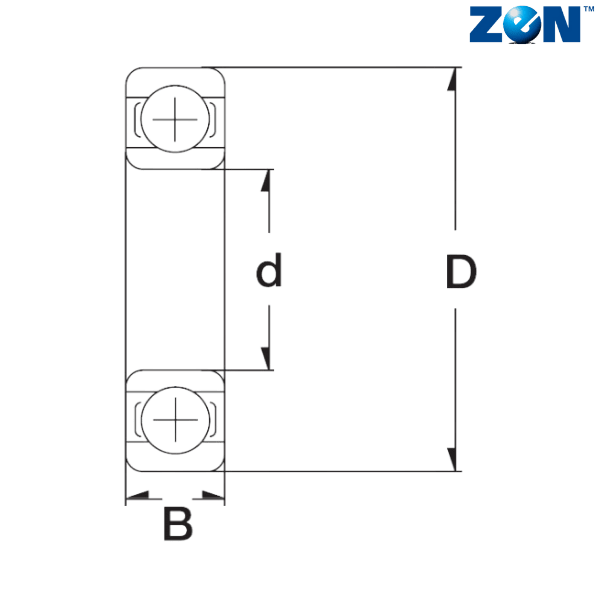

Inner Diameter (d) mm - 19.050
Inner Diameter (d) inch - 0.7500
Outer Diameter (D) mm - 41.275
Outer Diameter (D) inch - 1.6250
Width (B) mm - 12.700
Width (B) inch - 0.5000
Dynamic Load Rating (N) - 9380
Static Load Rating (N) - 5000
Weight (kg) - 0.055

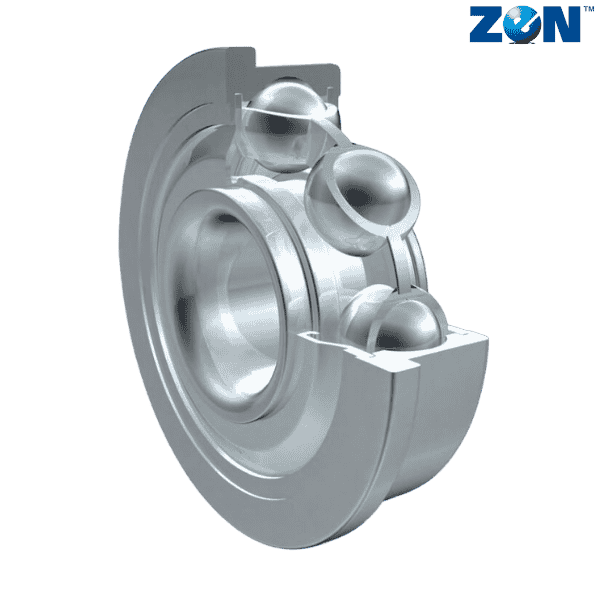

** Images are for representation purposes only
