Description
Brand - ZEN
Item Number - 1628-2RS ZEN
Category - Deep Groove Ball Bearing (Commercial Inch)

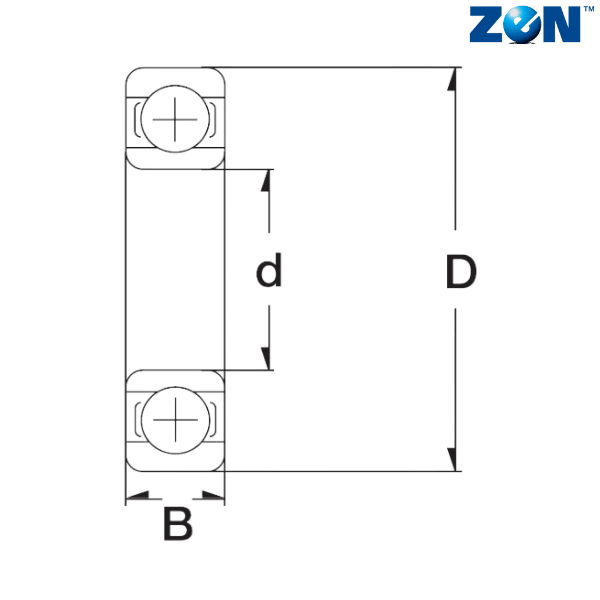

Inner Diameter (d) mm - 15.875
Inner Diameter (d) inch - 0.6250
Outer Diameter (D) mm - 41.275
Outer Diameter (D) inch - 1.6250
Width (B) mm - 12.700
Width (B) inch - 0.5000
Dynamic Load Rating (N) - 3284
Static Load Rating (N) - 2020
Weight (kg) - 0.072

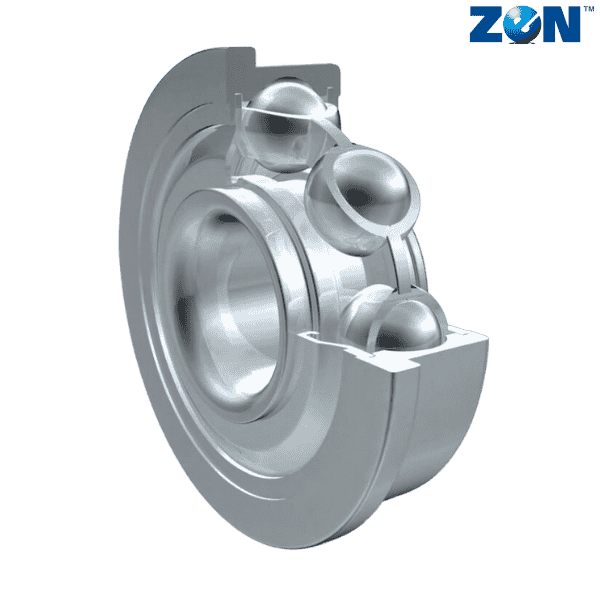

** Images are for representation purposes only
