Description
Brand - ZEN
Item Number - 1615-2Z ZEN
Category - Deep Groove Ball Bearing (Commercial Inch)

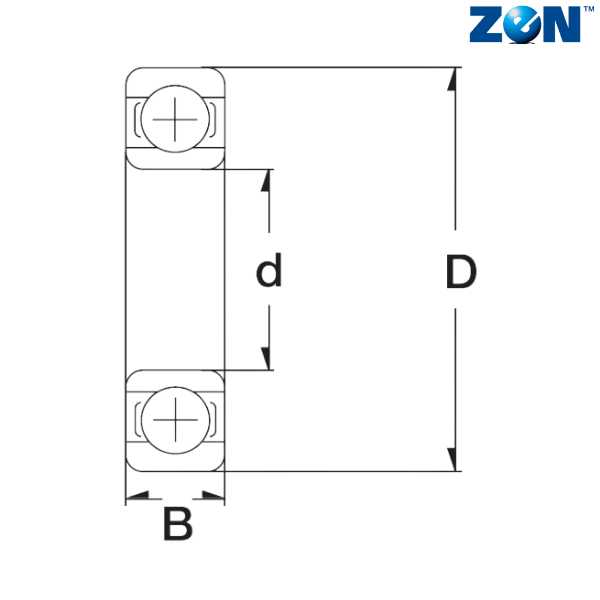

Inner Diameter (d) mm - 11.112
Inner Diameter (d) inch - 0.4380
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.1250
Width (B) mm - 9.525
Width (B) inch - 0.3750
Dynamic Load Rating (N) - 1780
Static Load Rating (N) - 1020
Weight (kg) - 0.032

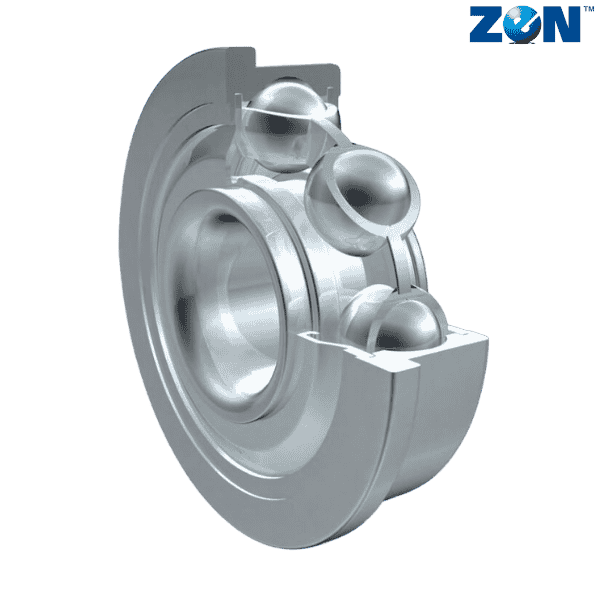

** Images are for representation purposes only
