Description
Brand - TIMKEN
Item Number - 16131/16284-B TIMKEN
Also Known As - 16131 - 16284-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 33.337
Bore Diameter (d) inch - 1.3125
Outer Diameter (D) mm - 72.238
Outer Diameter (D) inch - 2.844
Width (T1) mm - 8.733
Width (T1) inch - 0.3438
Dynamic Load Rating (C1) N - 56600
Dynamic Load Rating (C1) lbf - 12700
Factor (e) - 0.4
Factor (Y) - 1.49
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 14700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 10100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2270
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45
Basic Static Radial Load Rating (C0) N - 65800
Basic Static Radial Load Rating (C0) lbf - 14800
Cone Width (B) mm - 20.638
Cone Width (B) inch - 0.8125
Cup Width (C) mm - 15.875
Cup Width (C) inch - 0.625
Effective Center Location (a) mm - -4.1
Effective Center Location (a) inch - -0.16
Outer Diameter of Outer Ring Flange (D1) mm - 76.098
Outer Diameter of Outer Ring Flange (D1) inch - 2.996
Flange Width (C2) mm - 3.97
Flange Width (C2) inch - 0.1563

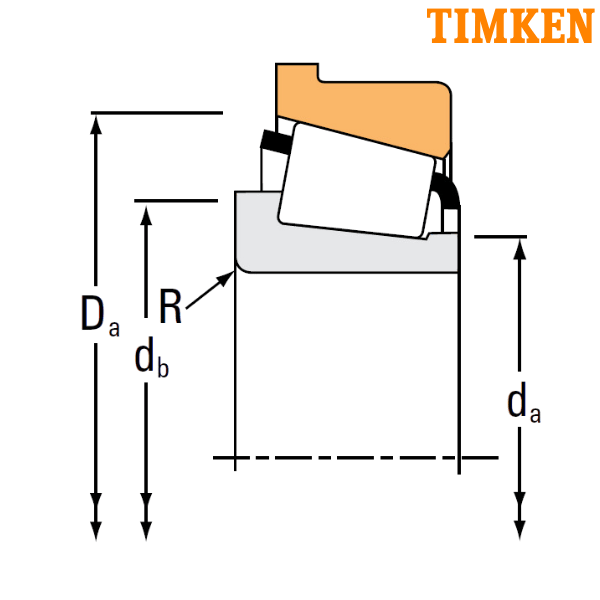

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 39.5
Cone Frontface Backing Diameter (da) inch - 1.56
Cone Backface Backing Diameter (db) mm - 46
Cone Backface Backing Diameter (db) inch - 1.81
Cup Frontface Backing Diameter (Da) mm - 69
Cup Frontface Backing Diameter (Da) inch - 2.72
Geometry Factor (G1) - 20.3
Geometry Factor (G2) - 14.5
Geometry Factor (Cg) - 0.0707
Weight (kg) - 0.41
Weight (lbs) - 0.91
Inner Part Number - 16131
Outer Part Number - 16284-B
TSF - Single-Row Bearing with a Flange on the Outer Ring
** Images are for representation purposes only
