Description
Brand - NILOS
Item Number - 16056 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 280 mm
Outer Diameter (a) - 390 mm
Dimension (C) - 345 mm
Widtth (h) - 5.3 mm
Material Thickness (s) - 0.7 mm

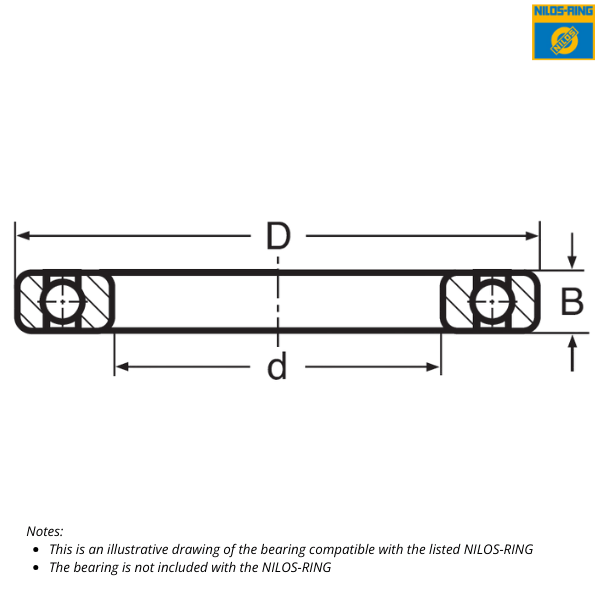

Description of Compatible Bearing (160 Series) :
Bearing Part Number - 16056
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 280 mm
Outer Diameter (D) - 420 mm
Width (B) - 44 mm
♦♦ Images are for representation purposes only
