16040 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16040 FAG

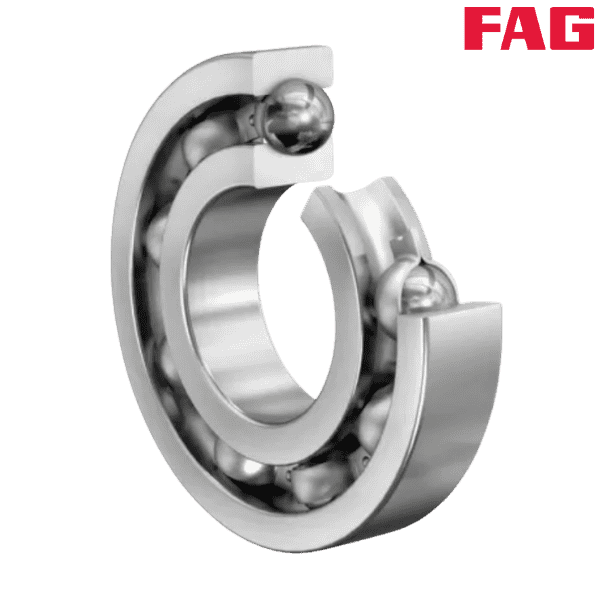

Category - Deep Groove Ball Bearing Single Row

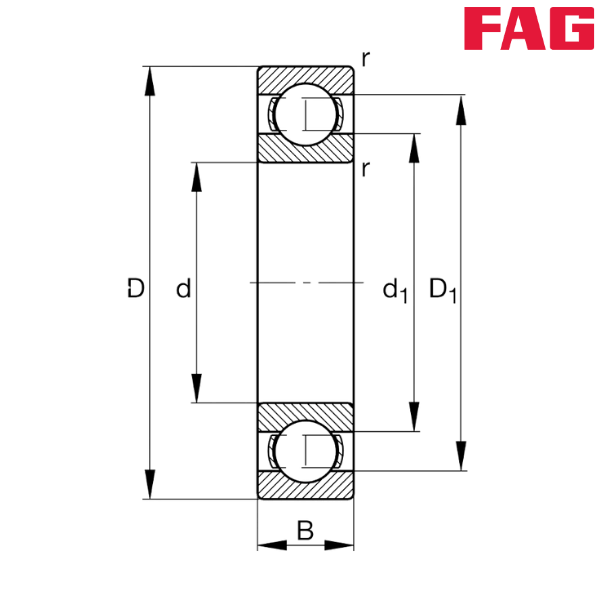

Inner Diameter (d) mm - 200
Outer Diameter (D) mm - 310
Width (B) mm - 34
Basic Dynamic Load Rating (Cr) N - 186000
Basic Static Load Rating (C0r) N - 202000
Fatigue Limit Load (Cur) N - 7500
Limiting Speed (nG) min–1 - 2850
Speed Rating (nϑr) min–1 - 2470
Calculation Factor (f0) - 16.4
Weight (m) kg - 8.97
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 276.5
Shoulder Diameter Inner Ring (d1) mm - 244.35
Minimum Diameter Shaft Shoulder (da) mm - 208.8
Maximum Diameter of Housing Shoulder (Da) mm - 301.2
Maximum Fillet Radius (ra) mm - 2

** Images are for representation purposes only
