16036 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16036 FAG
Category - Deep Groove Ball Bearing Single Row

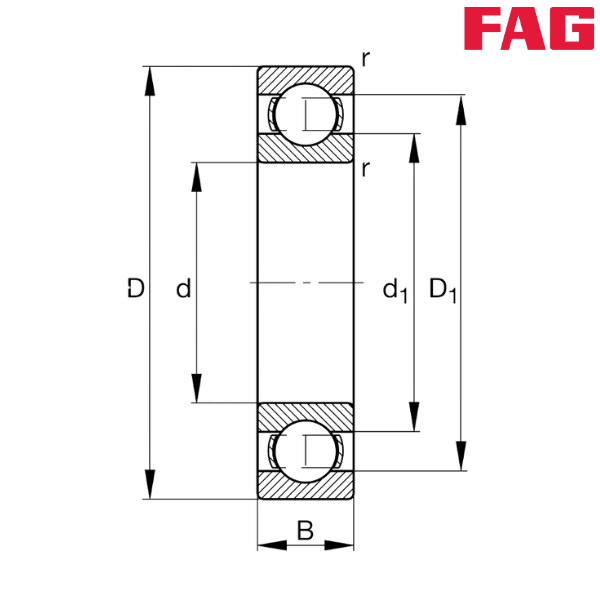

Inner Diameter (d) mm - 180
Outer Diameter (D) mm - 280
Width (B) mm - 31
Basic Dynamic Load Rating (Cr) N - 140000
Basic Static Load Rating (C0r) N - 146000
Fatigue Limit Load (Cur) N - 5300
Limiting Speed (nG) min–1 - 3350
Speed Rating (nϑr) min–1 - 2950
Calculation Factor (f0) - 16.4
Weight (m) kg - 6.86
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 238.95
Shoulder Diameter Inner Ring (d1) mm - 211.88

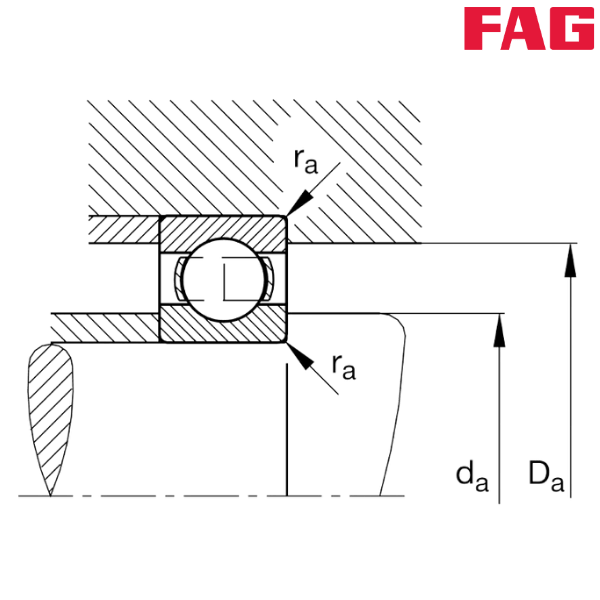

Minimum Diameter Shaft Shoulder (da) mm - 188.8
Maximum Diameter of Housing Shoulder (Da) mm - 271.2
Maximum Fillet Radius (ra) mm - 2

** Images are for representation purposes only
