Description
Brand - ZEN
Item Number - 1603-2Z ZEN
Category - Deep Groove Ball Bearing (Commercial Inch)

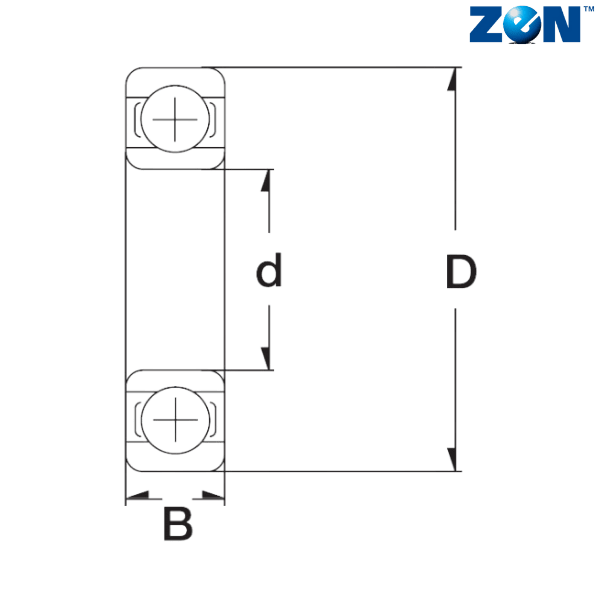

Inner Diameter (d) mm - 7.937
Inner Diameter (d) inch - 0.3130
Outer Diameter (D) mm - 22.225
Outer Diameter (D) inch - 0.8750
Width (B) mm - 7.143
Width (B) inch - 0.2810
Dynamic Load Rating (N) - 2065
Static Load Rating (N) - 1014
Weight (kg) - 0.009
** Images are for representation purposes only
