Description
Brand - FAG
Item Number - 16028 FAG
Category - Deep Groove Ball Bearing Single Row

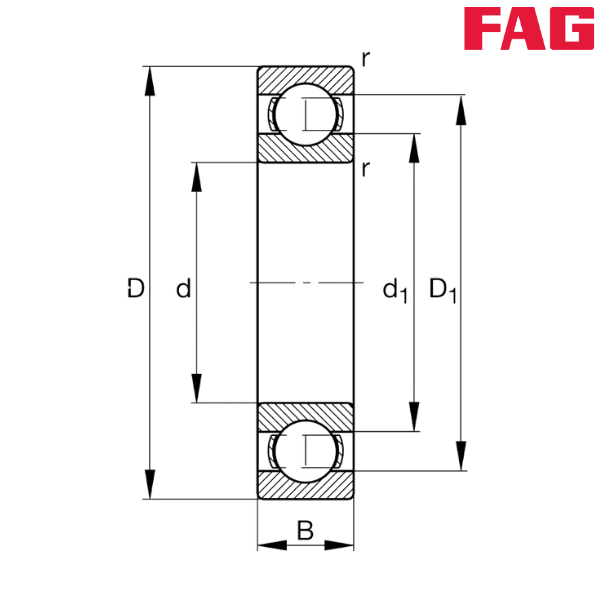

Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 210
Width (B) mm - 22
Basic Dynamic Load Rating (Cr) N - 86000
Basic Static Load Rating (C0r) N - 87000
Fatigue Limit Load (Cur) N - 3850
Limiting Speed (nG) min–1 - 4400
Speed Rating (nϑr) min–1 - 3200
Calculation Factor (f0) - 16.5
Weight (m) kg - 2.54
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 186.72
Shoulder Diameter Inner Ring (d1) mm - 164.72
Minimum Diameter Shaft Shoulder (da) mm - 146
Maximum Diameter of Housing Shoulder (Da) mm - 204
Maximum Fillet Radius (ra) mm - 1

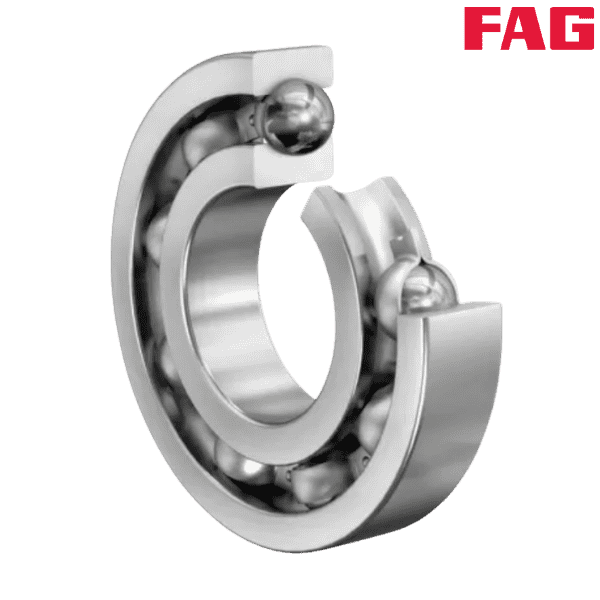

** Images are for representation purposes only
