Description
Brand - FAG
Item Number - 16024 FAG

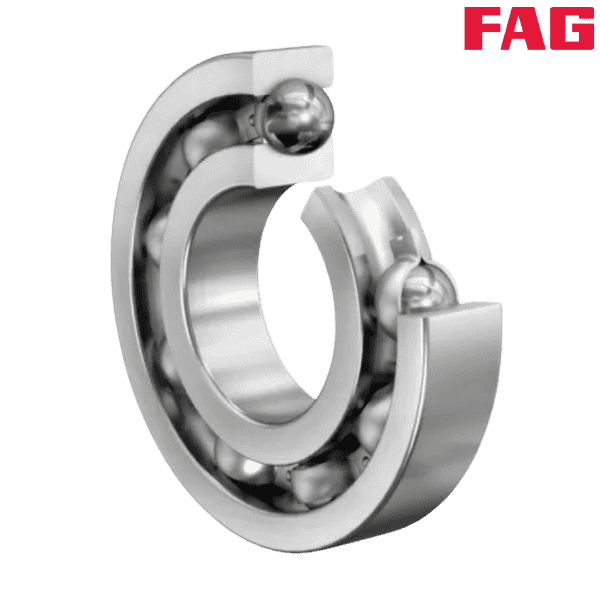

Category - Deep Groove Ball Bearing Single Row

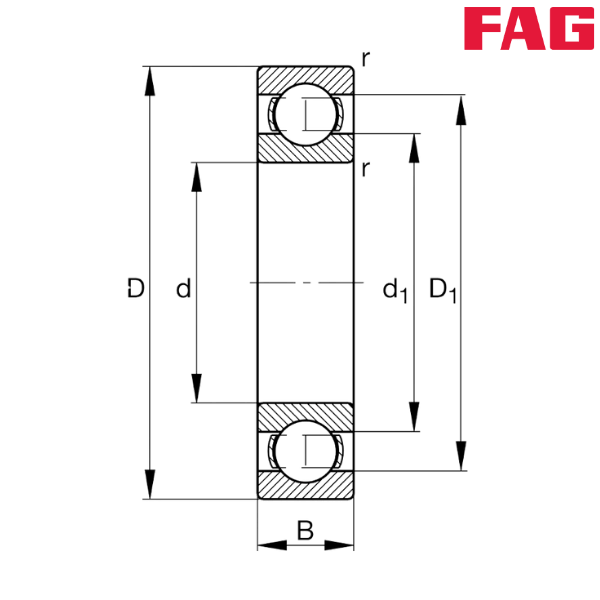

Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 180
Width (B) mm - 19
Basic Dynamic Load Rating (Cr) N - 65000
Basic Static Load Rating (C0r) N - 64000
Fatigue Limit Load (Cur) N - 3100
Limiting Speed (nG) min–1 - 5200
Speed Rating (nϑr) min–1 - 3550
Calculation Factor (f0) - 16.5
Weight (m) kg - 1.61
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 159.48
Shoulder Diameter Inner Ring (d1) mm - 140.72

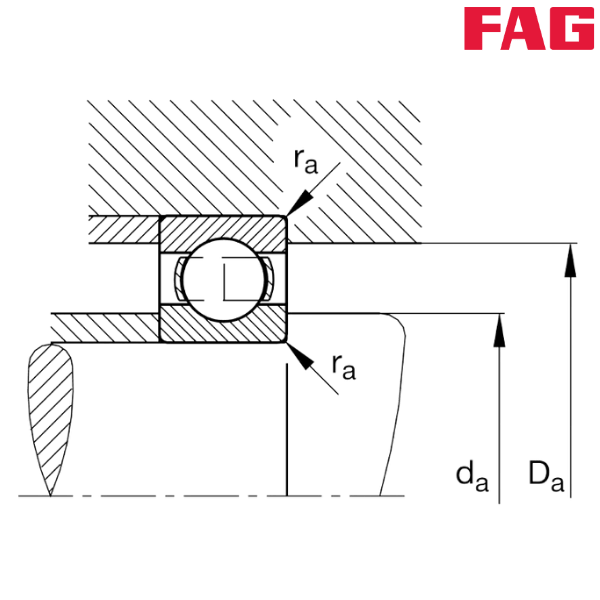

Minimum Diameter Shaft Shoulder (da) mm - 124.6
Maximum Diameter of Housing Shoulder (Da) mm - 175.4
Maximum Fillet Radius (ra) mm - 1
** Images are for representation purposes only
