Description
Brand - NILOS
Item Number - 16019 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing

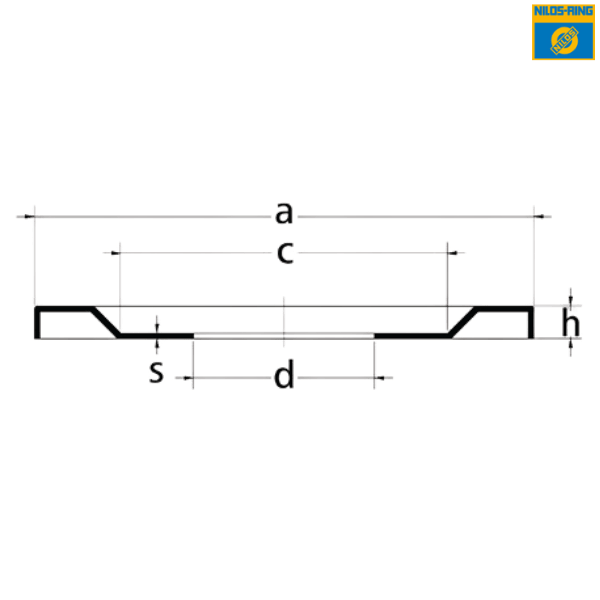

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 95 mm
Outer Diameter (a) - 137 mm
Dimension (C) - 110 mm
Widtth (h) - 3.5 mm
Material Thickness (s) - 0.5 mm

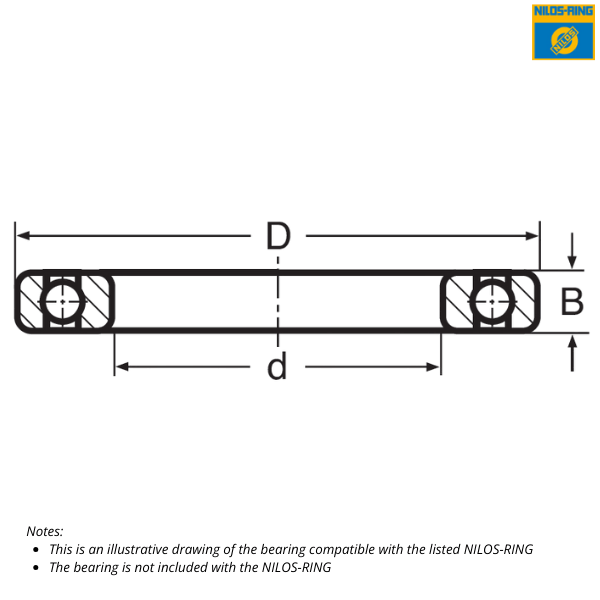

Description of Compatible Bearing (160 Series) :
Bearing Part Number - 16019
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 145 mm
Width (B) - 16 mm
♦♦ Images are for representation purposes only
