16018 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16018 FAG

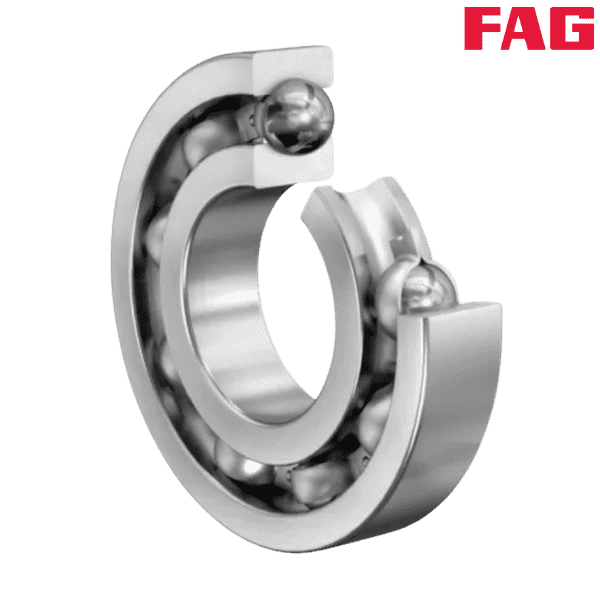

Category - Deep Groove Ball Bearing Single Row

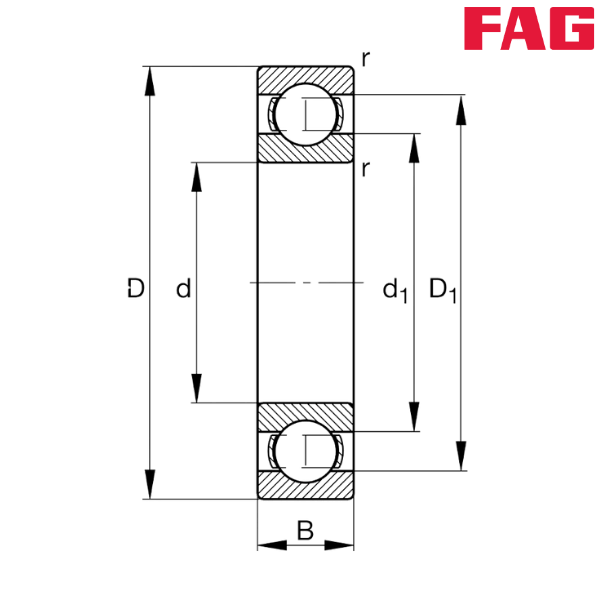

Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 140
Width (B) mm - 16
Basic Dynamic Load Rating (Cr) N - 44000
Basic Static Load Rating (C0r) N - 39500
Fatigue Limit Load (Cur) N - 2080
Limiting Speed (nG) min–1 - 6800
Speed Rating (nϑr) min–1 - 4400
Calculation Factor (f0) - 16.4
Weight (m) kg - 0.86
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 122.72
Shoulder Diameter Inner Ring (d1) mm - 107.56
Minimum Diameter Shaft Shoulder (da) mm - 94.6
Maximum Diameter of Housing Shoulder (Da) mm - 135.4
Maximum Fillet Radius (ra) mm - 1

** Images are for representation purposes only
