16017 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16017 FAG

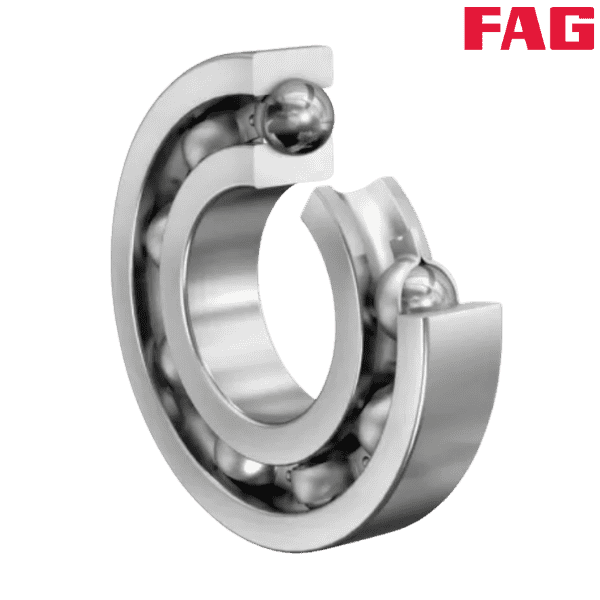

Category - Deep Groove Ball Bearing Single Row

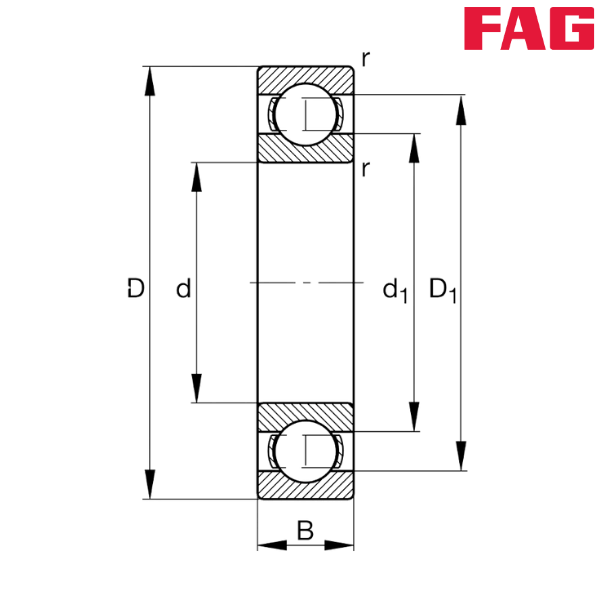

Inner Diameter (d) mm - 85
Outer Diameter (D) mm - 130
Width (B) mm - 14
Basic Dynamic Load Rating (Cr) N - 36000
Basic Static Load Rating (C0r) N - 33500
Fatigue Limit Load (Cur) N - 1900
Limiting Speed (nG) min–1 - 7400
Speed Rating (nϑr) min–1 - 4400
Calculation Factor (f0) - 16.6
Weight (m) kg - 0.637
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 114.7
Shoulder Diameter Inner Ring (d1) mm - 100.9

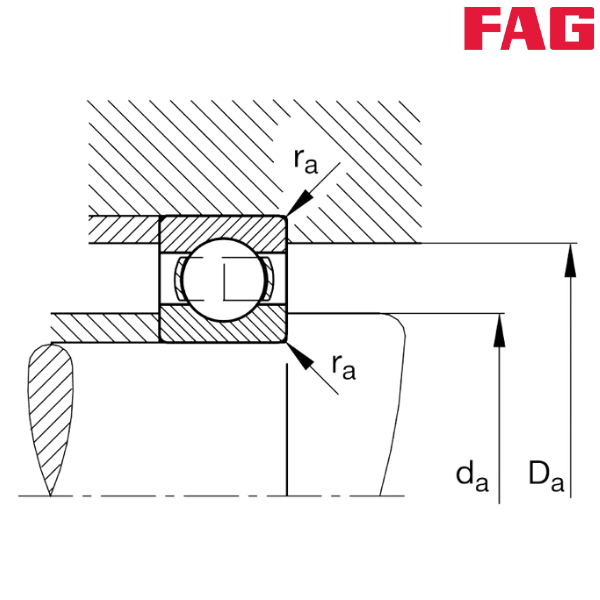

Minimum Diameter Shaft Shoulder (da) mm - 88.2
Maximum Diameter of Housing Shoulder (Da) mm - 126.8
Maximum Fillet Radius (ra) mm - 0.6

** Images are for representation purposes only
