16015 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16015 FAG
Category - Deep Groove Ball Bearing Single Row

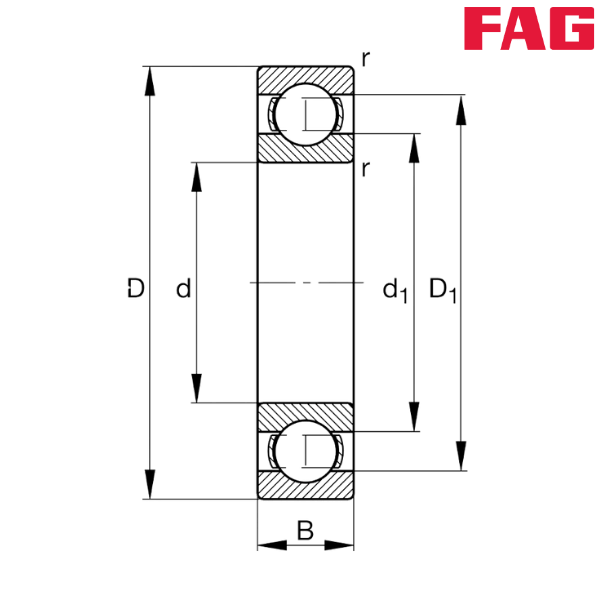

Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 115
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 30500
Basic Static Load Rating (C0r) N - 27000
Fatigue Limit Load (Cur) N - 1330
Limiting Speed (nG) min–1 - 8400
Speed Rating (nϑr) min–1 - 4900
Calculation Factor (f0) - 16.5
Weight (m) kg - 0.463
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 101.22
Shoulder Diameter Inner Ring (d1) mm - 88.7

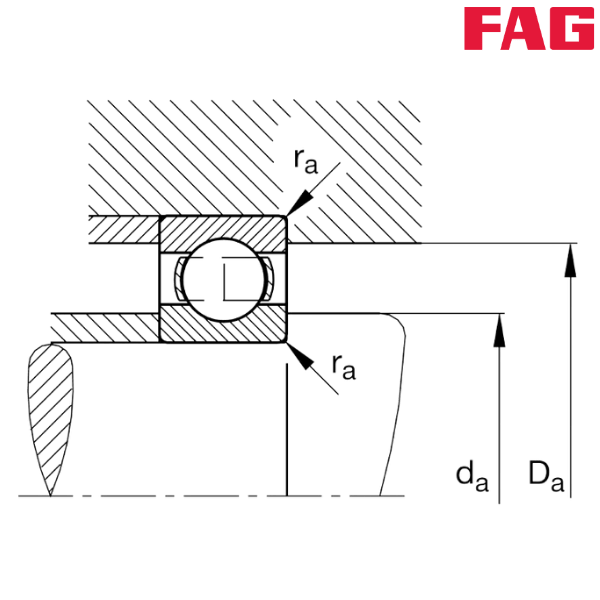

Minimum Diameter Shaft Shoulder (da) mm - 78.2
Maximum Diameter of Housing Shoulder (Da) mm - 111.8
Maximum Fillet Radius (ra) mm - 0.6

** Images are for representation purposes only
