16012 FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 16012 FAG

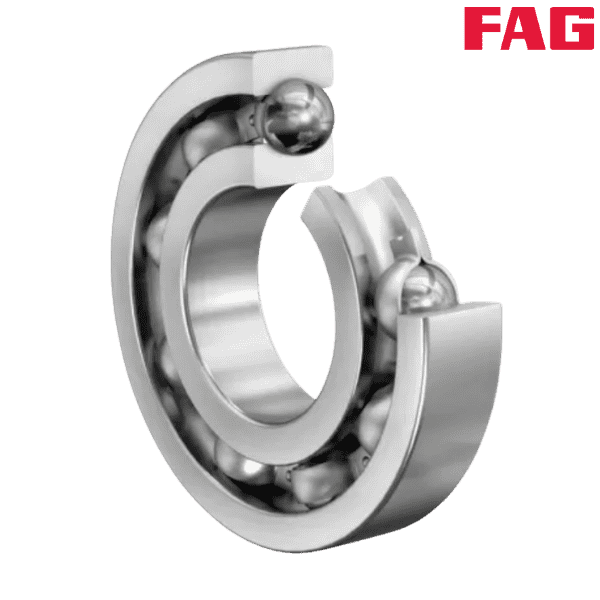

Category - Deep Groove Ball Bearing Single Row

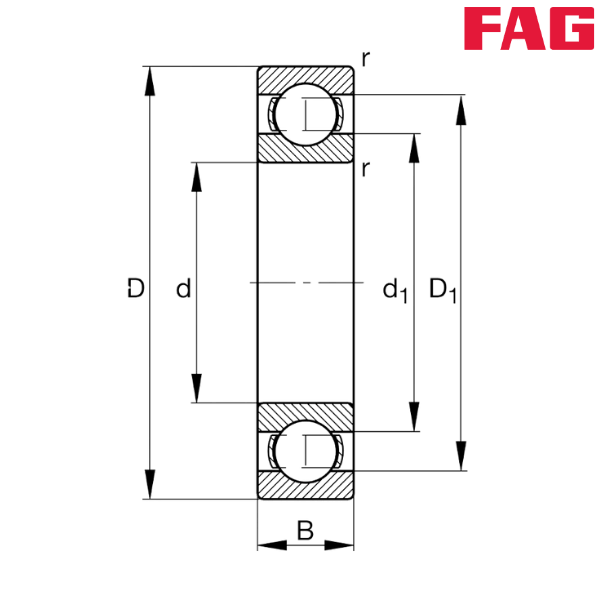

Inner Diameter (d) mm - 60
Outer Diameter (D) mm - 95
Width (B) mm - 11
Basic Dynamic Load Rating (Cr) N - 21200
Basic Static Load Rating (C0r) N - 17500
Fatigue Limit Load (Cur) N - 840
Limiting Speed (nG) min–1 - 10500
Speed Rating (nϑr) min–1 - 5700
Calculation Factor (f0) - 16.3
Weight (m) kg - 0.283
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 82.98
Shoulder Diameter Inner Ring (d1) mm - 72.12

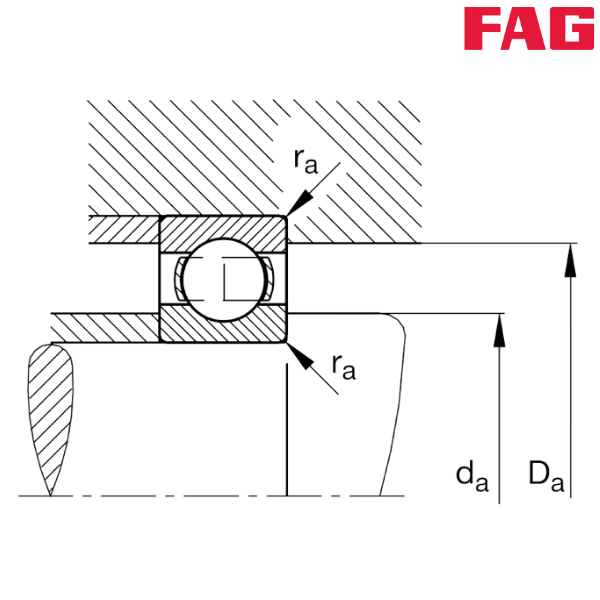

Minimum Diameter Shaft Shoulder (da) mm - 63.2
Maximum Diameter of Housing Shoulder (Da) mm - 91.8
Maximum Fillet Radius (ra) mm - 0.6

** Images are for representation purposes only
