Description
Brand - ZEN
Item Number - 1601-2RS ZEN
Category - Deep Groove Ball Bearing (Commercial Inch)

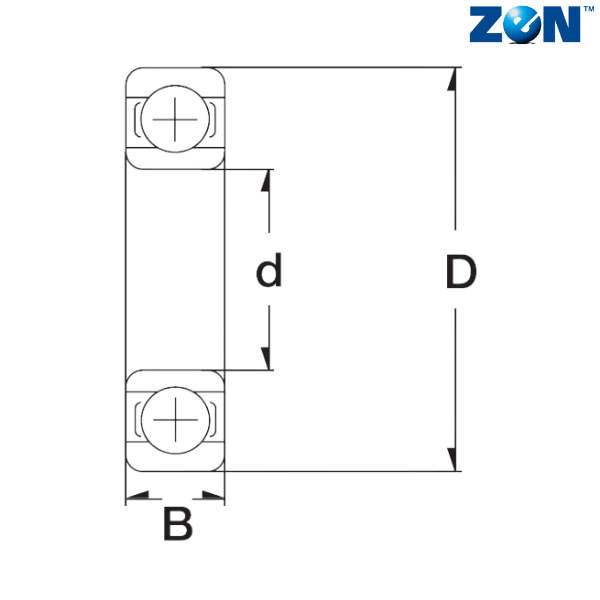

Inner Diameter (d) mm - 4.762
Inner Diameter (d) inch - 0.1880
Outer Diameter (D) mm - 17.462
Outer Diameter (D) inch - 0.6880
Width (B) mm - 7.940
Width (B) inch - 0.3125
Dynamic Load Rating (N) - 1308
Static Load Rating (N) - 650
Weight (kg) - 0.005

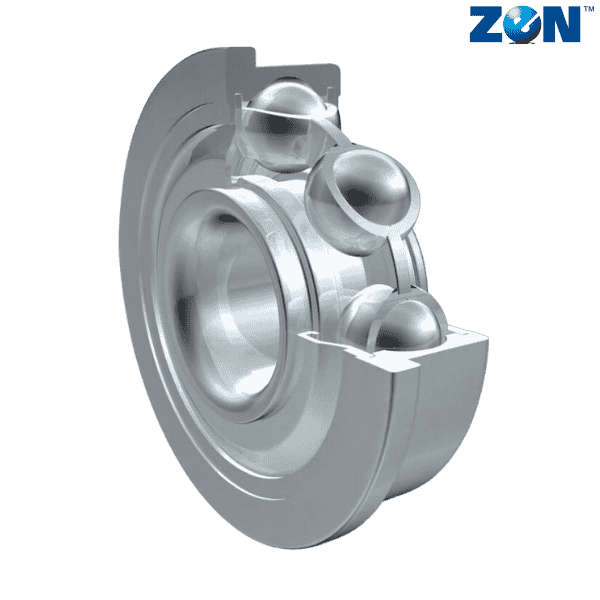

** Images are for representation purposes only
