Description
Brand - NILOS
Item Number - 16006 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing

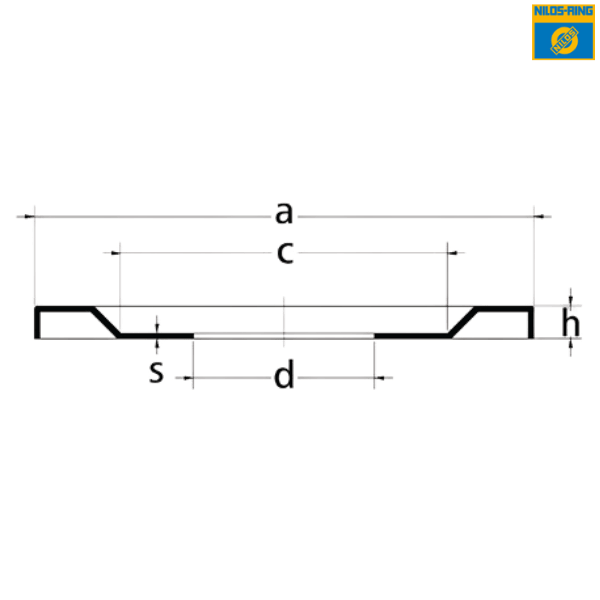

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 30 mm
Outer Diameter (a) - 50 mm
Dimension (C) - 40 mm
Widtth (h) - 2.5 mm
Material Thickness (s) - 0.3 mm

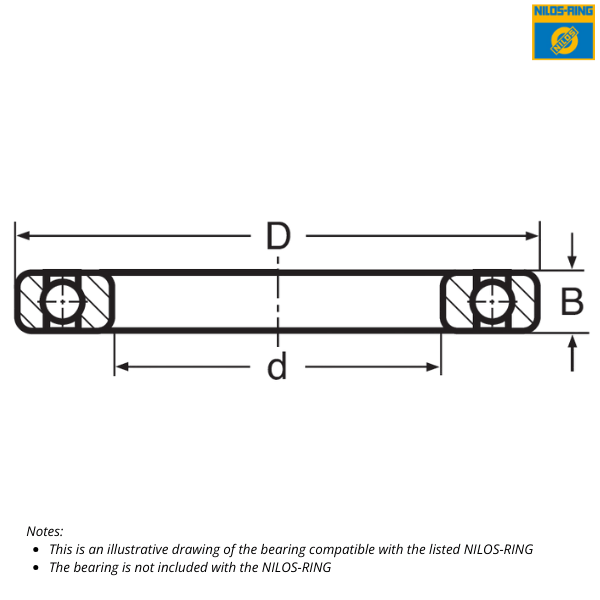

Description of Compatible Bearing (160 Series) :
Bearing Part Number - 16006
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 55 mm
Width (B) - 9 mm

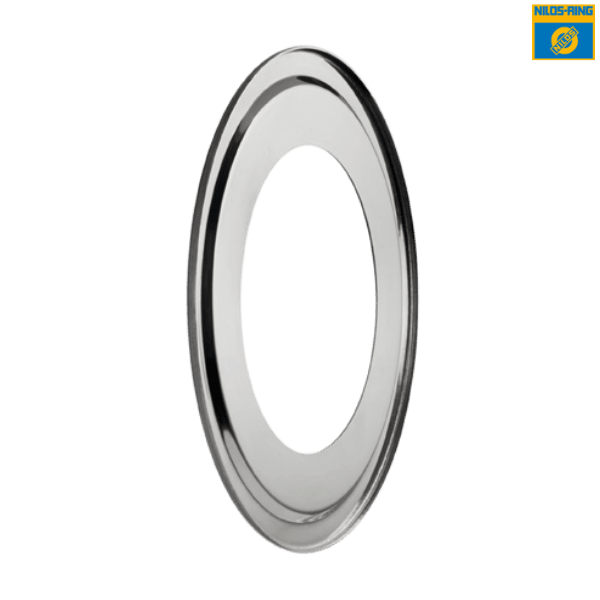

♦♦ Images are for representation purposes only
