Description
Brand - TIMKEN
Item Number - 15103-S/15243 TIMKEN
Also Known As - 15103-S - 15243
Category - Single Row Tapered Roller Bearing (TS Type)

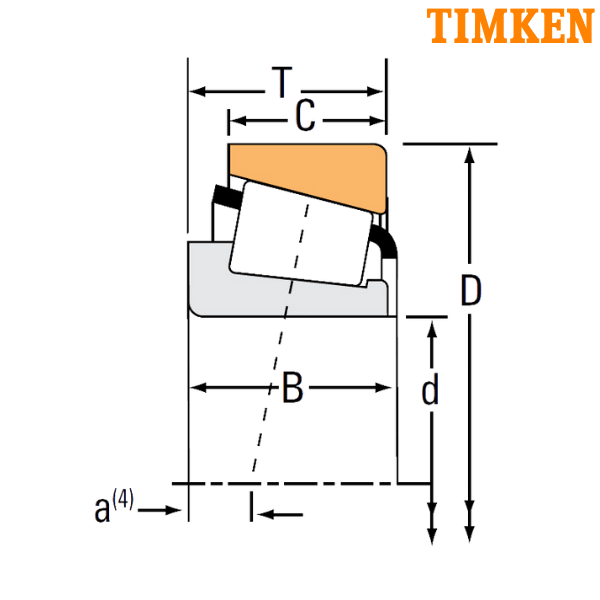

Bore Diameter (d) mm - 26.162
Bore Diameter (d) inch - 1.03
Outer Diameter (D) mm - 61.912
Outer Diameter (D) inch - 2.4375
Width (T) mm - 19.05
Width (T) inch - 0.75
Dynamic Load Rating (C1) N - 59900
Dynamic Load Rating (C1) lbf - 13500
Factor (e) - 0.35
Factor (Y) - 1.71
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 15500
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3490
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 9310
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2090
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.67
Basic Static Radial Load Rating (C0) N - 53900
Basic Static Radial Load Rating (C0) lbf - 12100
Cone Width (B) mm - 19.939
Cone Width (B) inch - 0.785
Cup Width (C) mm - 14.288
Cup Width (C) inch - 0.5625
Effective Center Location (a) mm - -5.8
Effective Center Location (a) inch - -0.23

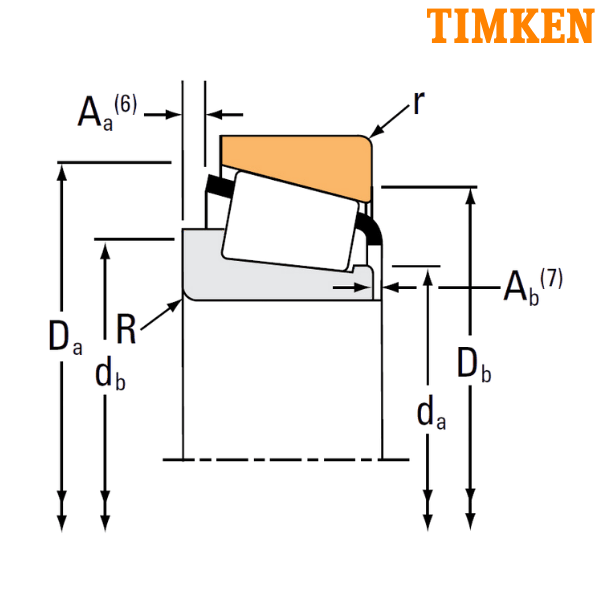

Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Cone Frontface Backing Diameter (da) mm - 33.5
Cone Frontface Backing Diameter (da) inch - 1.32
Cone Backface Backing Diameter (db) mm - 33.5
Cone Backface Backing Diameter (db) inch - 1.32
Max Housing Fillet Radius (r) mm - 2
Max Housing Fillet Radius (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 58
Cup Frontface Backing Diameter (Da) inch - 2.28
Cup Backface Backing Diameter (Db) mm - 54
Cup Backface Backing Diameter (Db) inch - 2.13
Cage-Cone Backface Clearance (Aa) mm - 1.2
Cage-Cone Backface Clearance (Aa) inch - 0.04
Cage-Cone Frontface Clearance (Ab) mm - 1.7
Cage-Cone Frontface Clearance (Ab) inch - 0.07
Geometry Factor (G1) - 14.6
Geometry Factor (G2) - 10
Geometry Factor (Cg) - 0.0606
Weight (kg) - 0.29
Weight (lbs) - 0.64
Inner Part Number - 15103-S
Outer Part Number - 15243
TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
