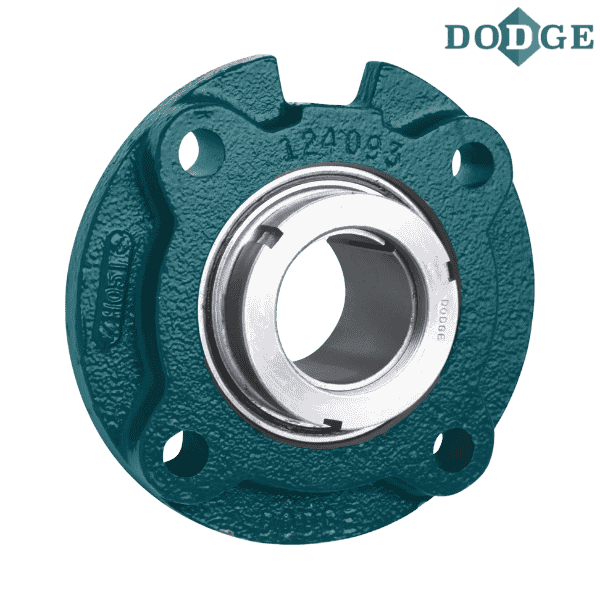

139292 DODGE - FC-GTM-55M

Brand - DODGE
Item Number - 139292 DODGE - FC-GTM-55M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 212
Shaft Size (mm) - 55
Description - FC-GTM-55M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129507
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-12
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136567
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-12-55M-D
Weight (kg) - 5.6

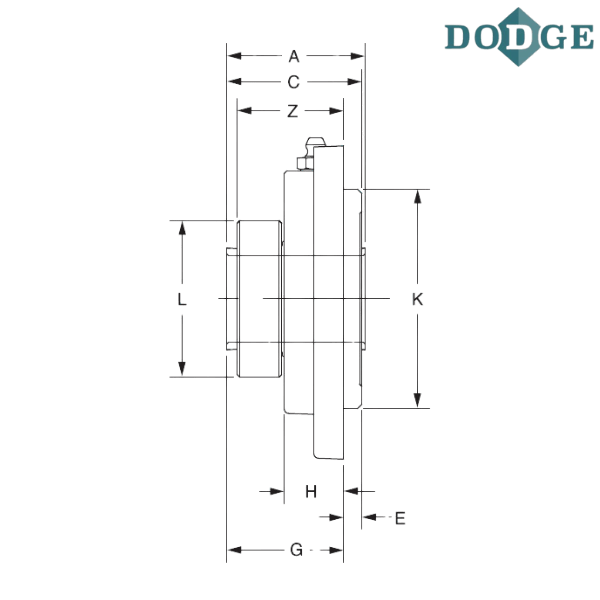

Length Through Bore (A) mm - 53.8

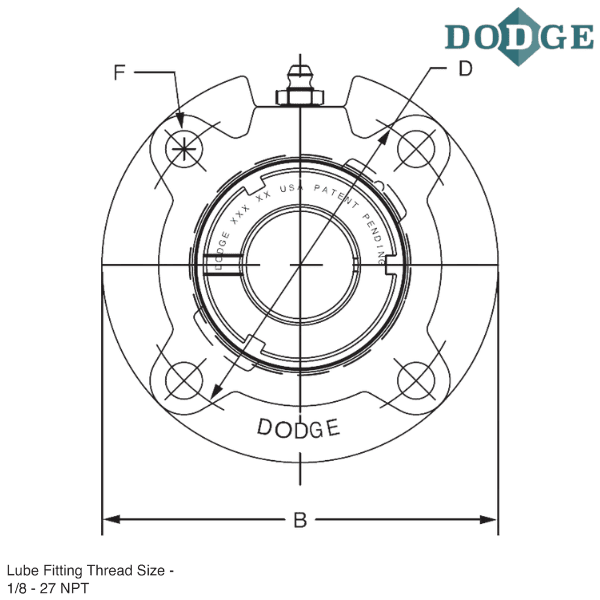

Overall Length (B) mm - 181.1
Thickness (C) mm - 64
Bolt Circle (D) mm - 152.4
Pilot Depth (E) mm - 22.4
F-Bolt Diameter - M12
G (mm) - 41.9
H (mm) - 25.4
Pilot Diameter (K) mm - 127.00/126.95
L (mm) - 93.7
Z (mm) - 43.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
