Description
Brand - DODGE
Item Number - 136998 DODGE - WSTU-SCEZ-200-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Wide Slot Take-Up Bearings)
Series - 210
Shaft Size (inch) - 2
Description - WSTU-SCEZ-200-SHCR
Weight (lbs) - 4.12
Take-Up Frame Number Reference - WS400

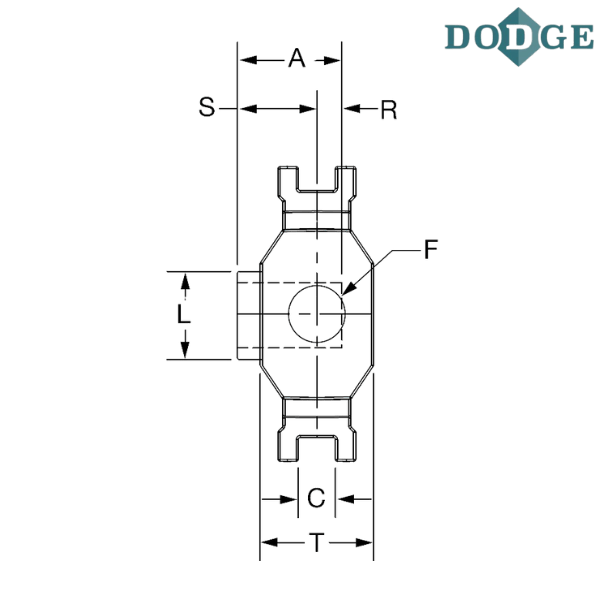

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.63
Thickness (C) inch - 0.688
D (inch) - 3.25
E (inch) - 3.5
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 2.75
K (inch) - 1.94
L (inch) - 2.43
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.5
R (inch) - 0.75
S (inch) - 1.19
T (inch) - 1.62
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
