136973 DODGE - LFT-SCEZ-35M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136973 DODGE - LFT-SCEZ-35M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - LFT-SCEZ-35M-SHCR
Weight (kg) - 0.8

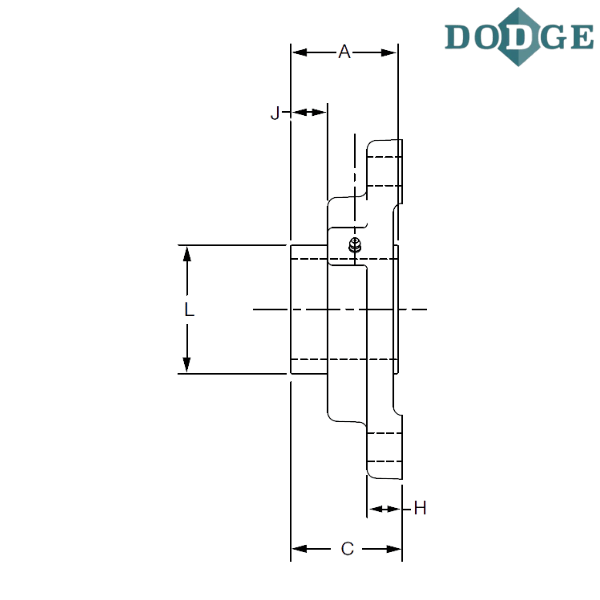

Length Through Bore (A) mm - 35.7
Overall Length (B) mm - 122.2
Thickness (C) mm - 44
Bolt Center to Center Length (D) mm - 100.1
G (mm) - 10.4
H (mm) - 17.1
J (mm) - 13.6
L (mm) - 46.7
M (mm) - 88.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 11 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
