136972 DODGE - LFT-SCEZ-30M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136972 DODGE - LFT-SCEZ-30M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - LFT-SCEZ-30M-SHCR
Weight (kg) - 0.58

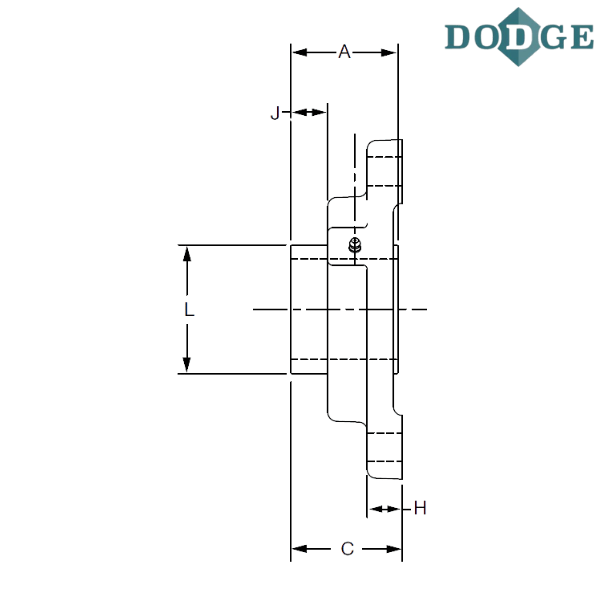

Length Through Bore (A) mm - 32
Overall Length (B) mm - 112.8
Thickness (C) mm - 39.6
Bolt Center to Center Length (D) mm - 90.4
G (mm) - 10.4
H (mm) - 15.5
J (mm) - 12.1
L (mm) - 39.9
M (mm) - 82.6
N (mm) - 43.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 8 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
