Description
Brand - DODGE
Item Number - 136970 DODGE - LFT-SCEZ-20M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - LFT-SCEZ-20M-SHCR
Weight (kg) - 0.31

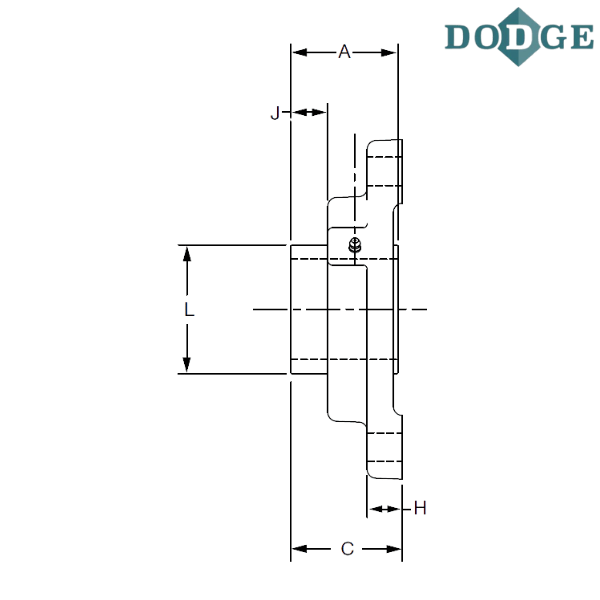

Length Through Bore (A) mm - 25.9
Overall Length (B) mm - 90.4
Thickness (C) mm - 31.6
Bolt Center to Center Length (D) mm - 71.4
G (mm) - 8.6
H (mm) - 14.7
J (mm) - 9.3
L (mm) - 28.4
M (mm) - 60.5
N (mm) - 34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 3 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
