136965 DODGE - FB-SCEZ-50M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136965 DODGE - FB-SCEZ-50M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Flange Bracket Bearings)
Series - 210
Shaft Size (mm) - 50
Description - FB-SCEZ-50M-SHCR
Weight (kg) - 2.03

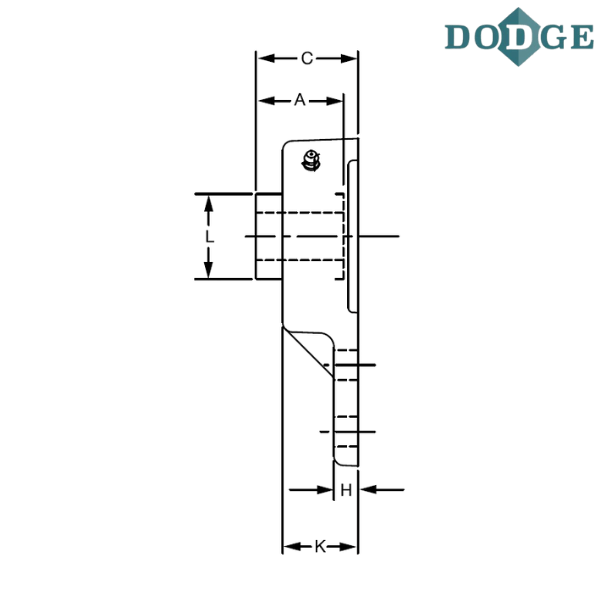

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 186.4
Thickness (C) mm - 50.3
Bolt Center to Center Length (D) mm - 69.9
E (mm) - 74.7
F-Bolt Diameter - M12
G (mm) - 41.4
H (mm) - 12.7
I (mm) - 131.8
Overall Width (J) mm - 109.5
K (mm) - 34.3
L (mm) - 61.7
M (mm) - 101.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
