136964 DODGE - FB-SCEZ-35M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136964 DODGE - FB-SCEZ-35M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Flange Bracket Bearings)
Series - 207
Shaft Size (mm) - 35
Description - FB-SCEZ-35M-SHCR
Weight (kg) - 1.3

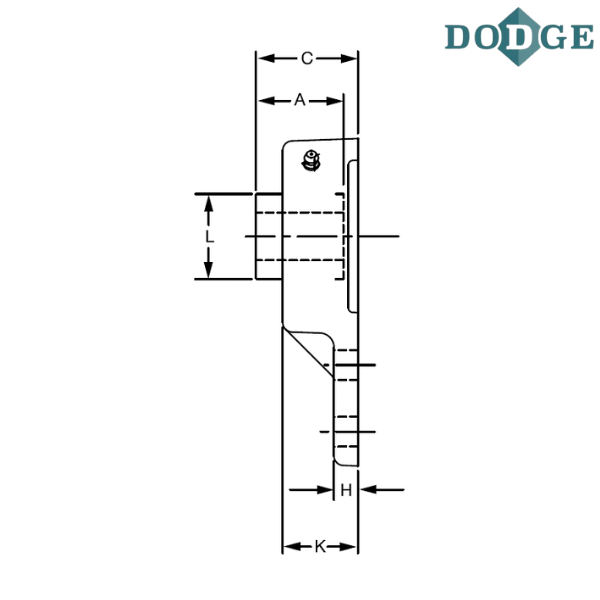

Length Through Bore (A) mm - 43.4
Overall Length (B) mm - 152.4
Thickness (C) mm - 44.7
Bolt Center to Center Length (D) mm - 50.8
E (mm) - 60.5
F-Bolt Diameter - M12
G (mm) - 31.8
H (mm) - 12.7
I (mm) - 108
Overall Width (J) mm - 88.9
K (mm) - 31
L (mm) - 46.7
M (mm) - 82.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
