136957 DODGE - TB-SCEZ-30M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136957 DODGE - TB-SCEZ-30M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ TB SHCR Normal Duty Stainless Steel Tapped Base Bearings)
Series - 206
Shaft Size (mm) - 30
Description - TB-SCEZ-30M-SHCR
Weight (kg) - 10.61

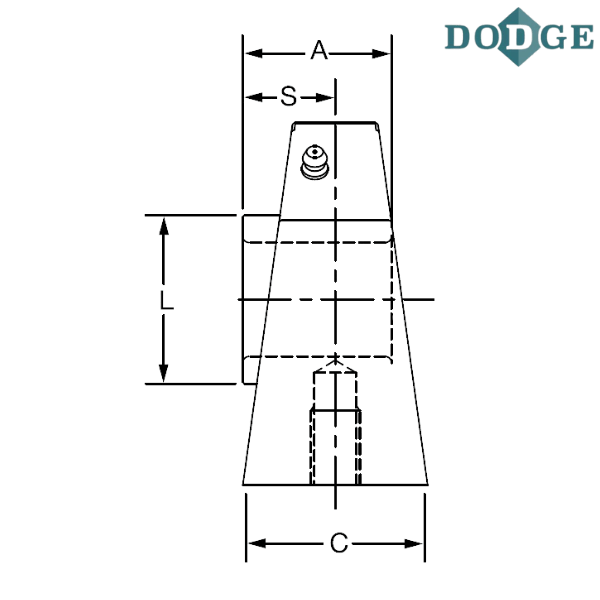

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 97.5
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 81.8
L (mm) - 39.9
Base to Center Height (M) mm - 42.9
N (mm) - 22.4
R (mm) - 0.4375-14
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
