Description
Brand - DODGE
Item Number - 136935 DODGE - LFT-SCEZ-103-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - LFT-SCEZ-103-SHCR
Weight (lbs) - 1.28

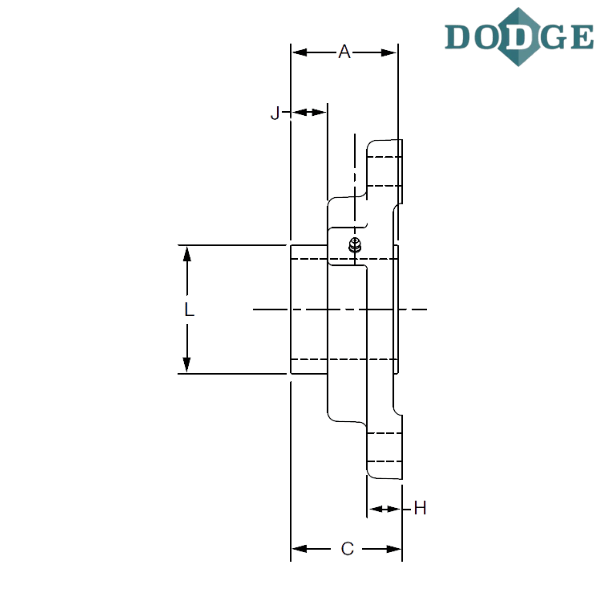

Length Through Bore (A) inch - 1.26
Overall Length (B) inch - 4.44
Thickness (C) inch - 1.56
Bolt Center to Center Length (D) inch - 3.56
G (inch) - 0.41
H (inch) - 0.61
J (inch) - 0.48
L (inch) - 1.57
M (inch) - 3.25
N (inch) - 1.72
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 6 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
